Description

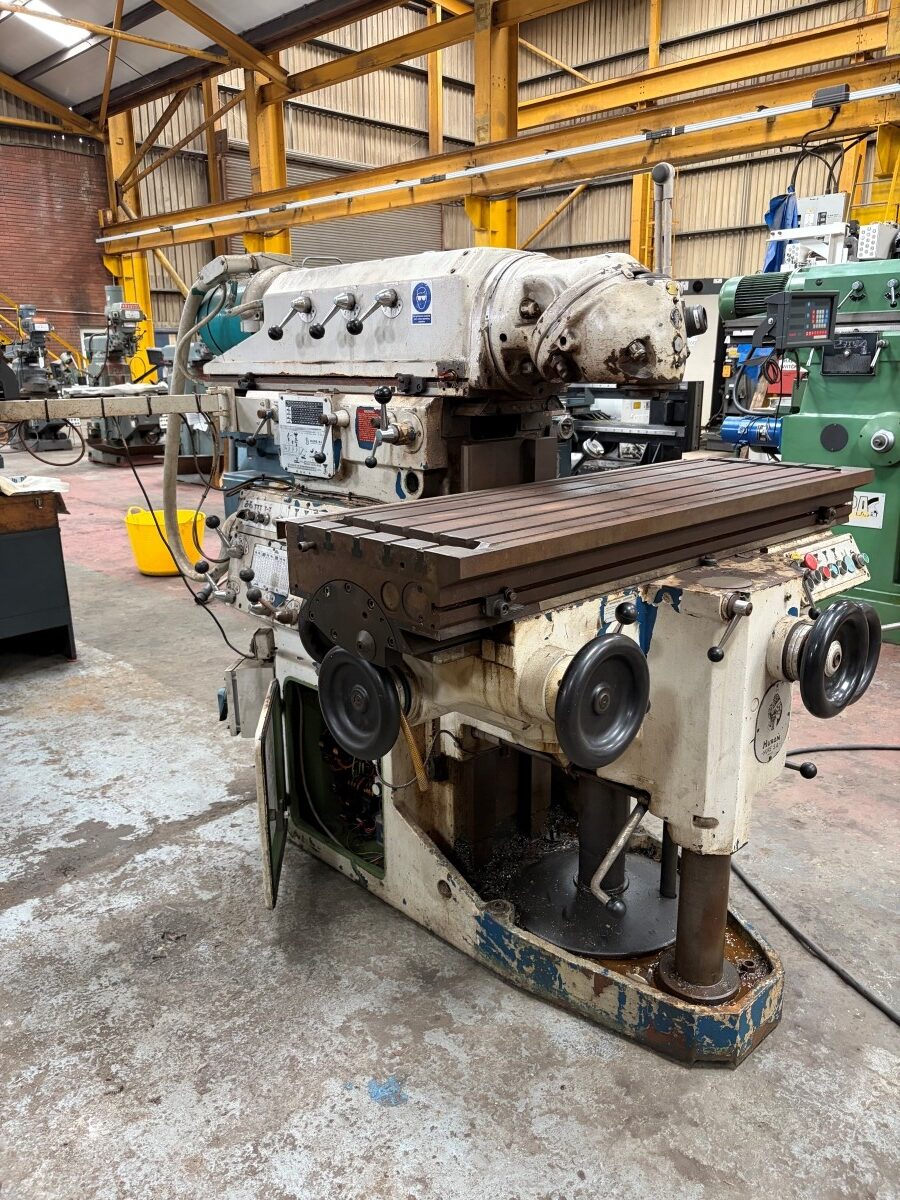

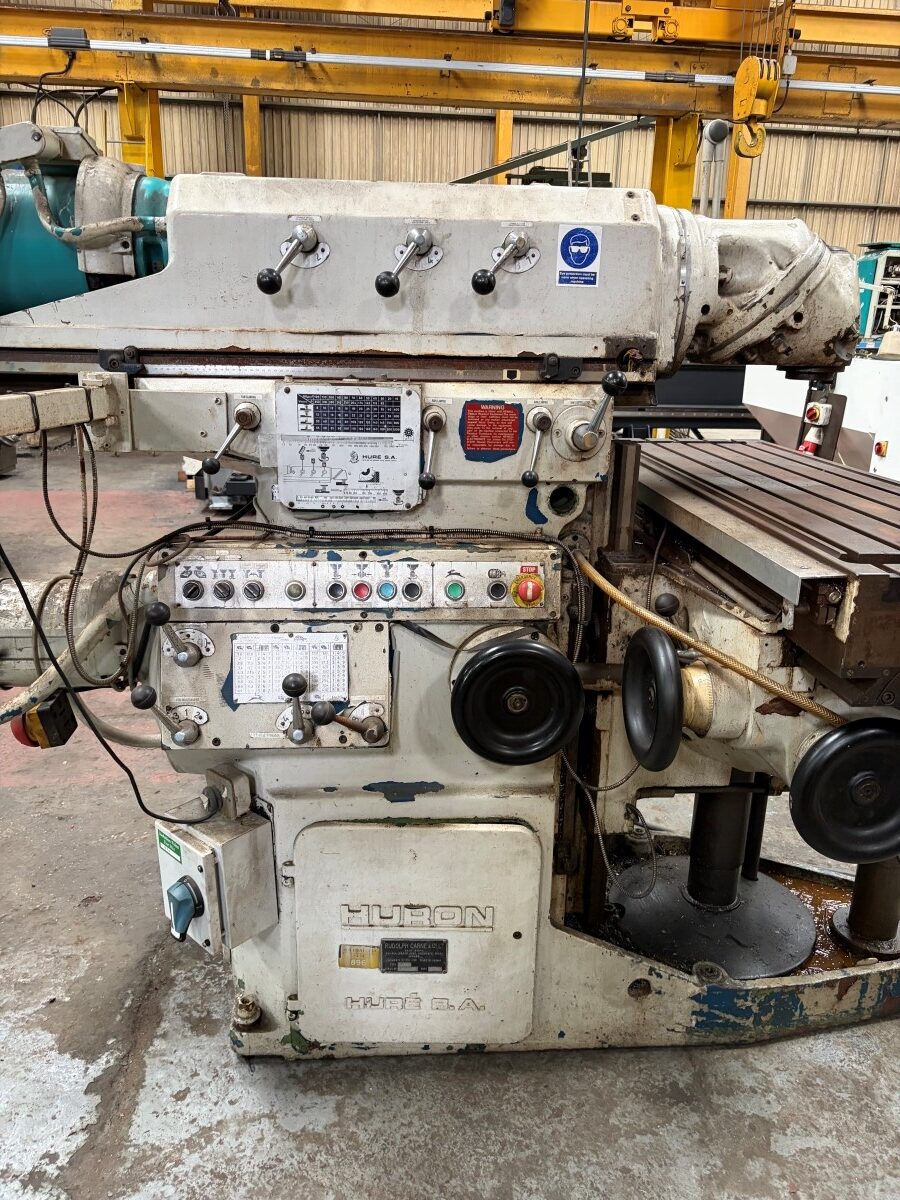

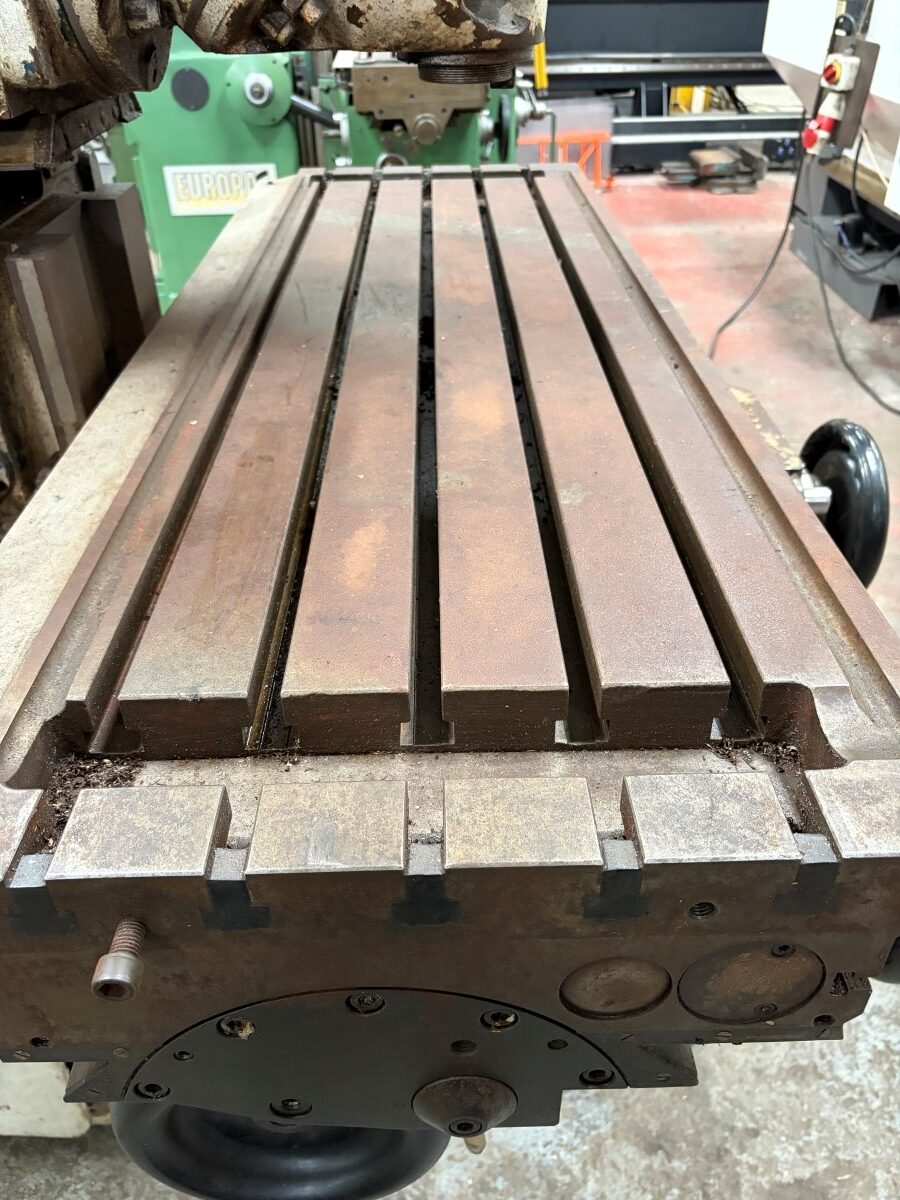

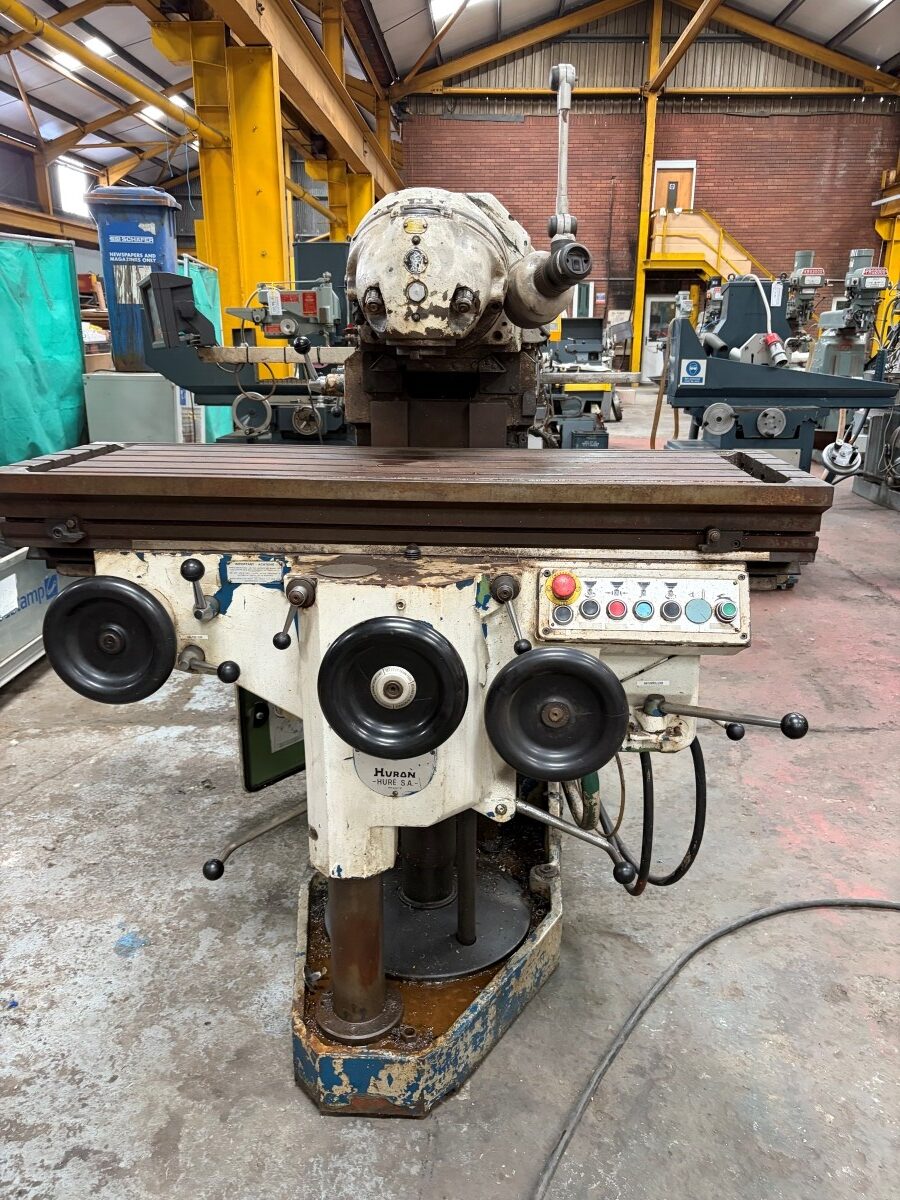

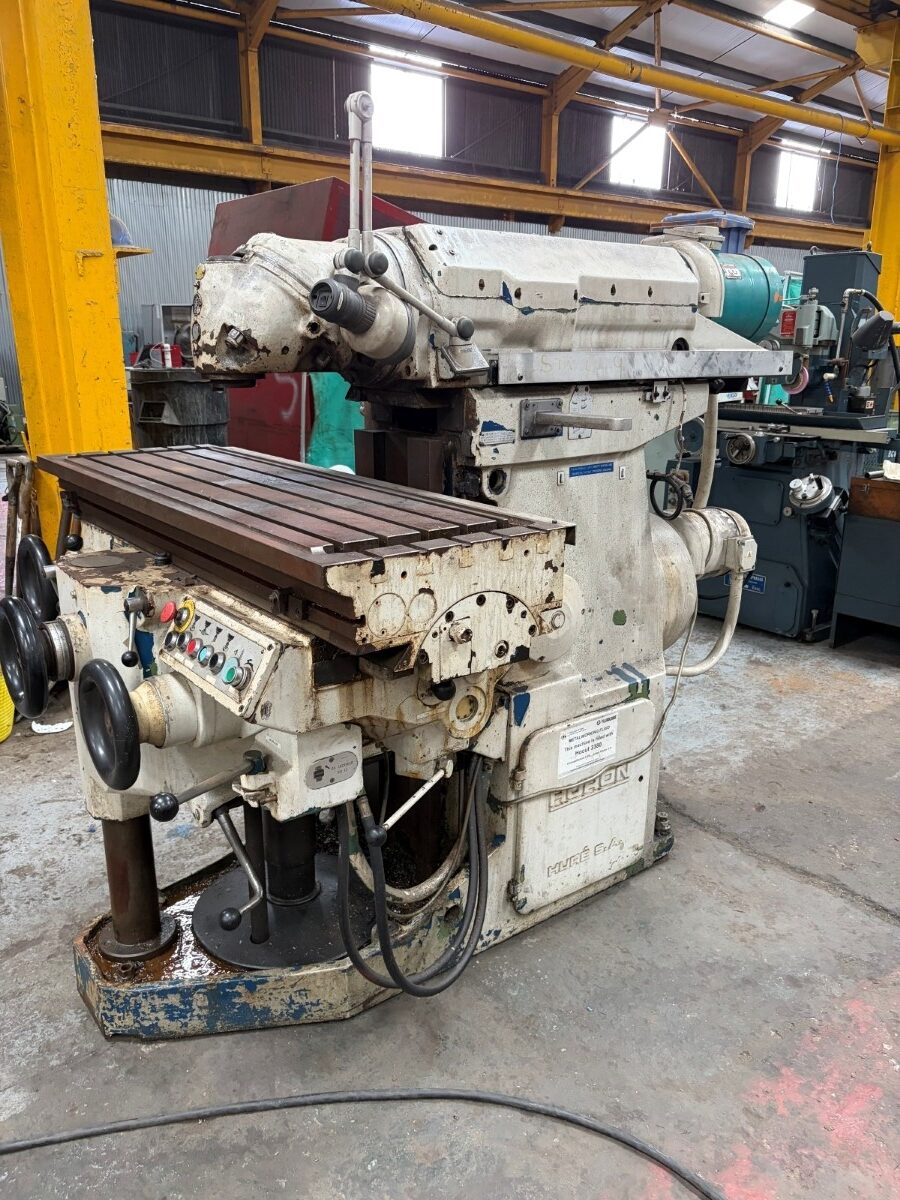

HURON NU4 UNIVERSAL MILLING MACHINE

TYPE:             NU4

SERIAL NO:  15082

Capacities:

Table Size:                              1435 x 455mm

Long Traverse:                       1100mm

Cross Traverse:                      700mm

Vertical Traverse:                   470mm

Spindle to Table:                    9 – 509mm

Spindle Taper:                        40 Int

Spindle Speeds:                      30 – 2066rpm

Feeds:

Long & Cross Traverse:         1.6 – 820mm/min       Rapids 2800mm/min

Vertical Traverse:                   0.8 – 410mm/min       Rapids 1400mm/min

 Motor:                                     9kw

Electrics:                                415v, 3ph, 50 cycles

Complete With:

Universal Head

3 Axis DRO

Lovo Light

Coolant

Approximate Dimensions:     2360 x 1650 x 1800mm

Approximate Weight:             3200kg
