Description

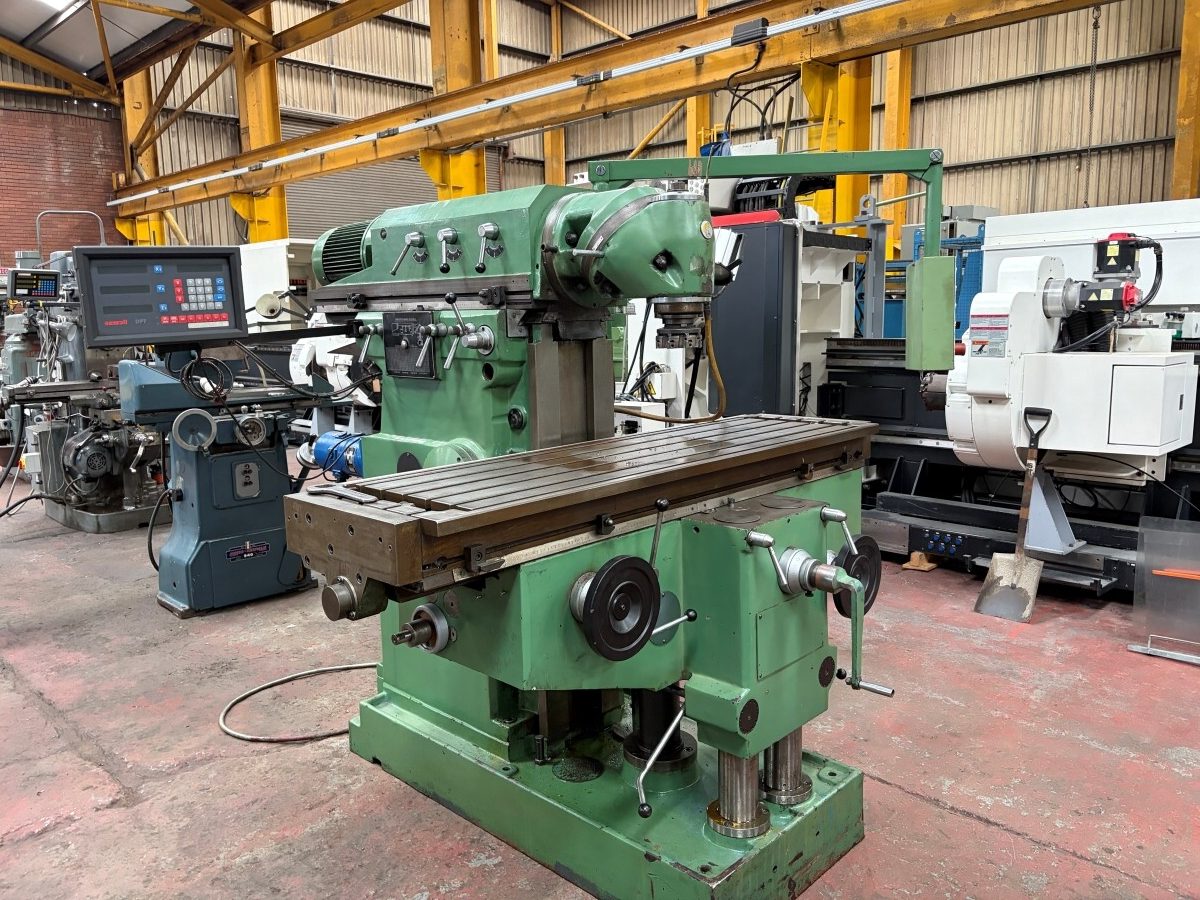

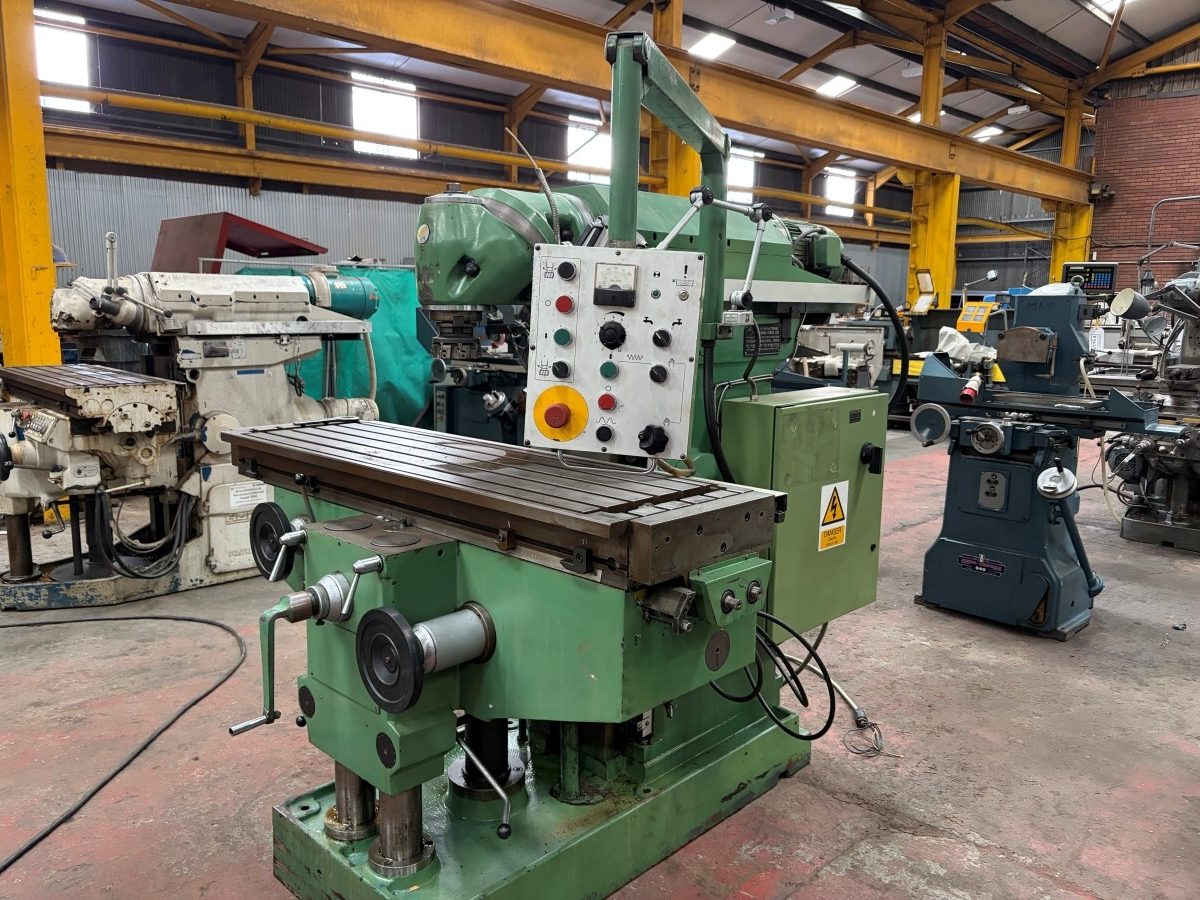

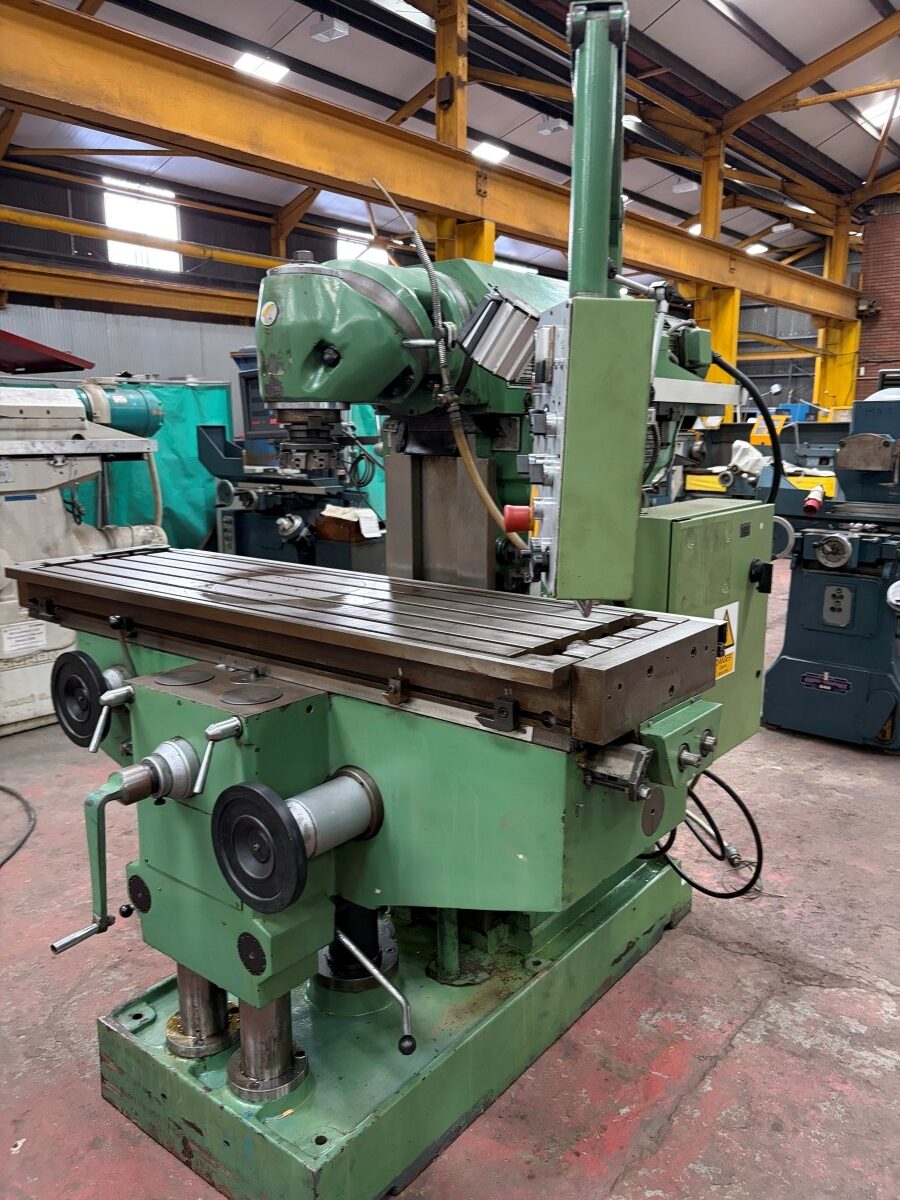

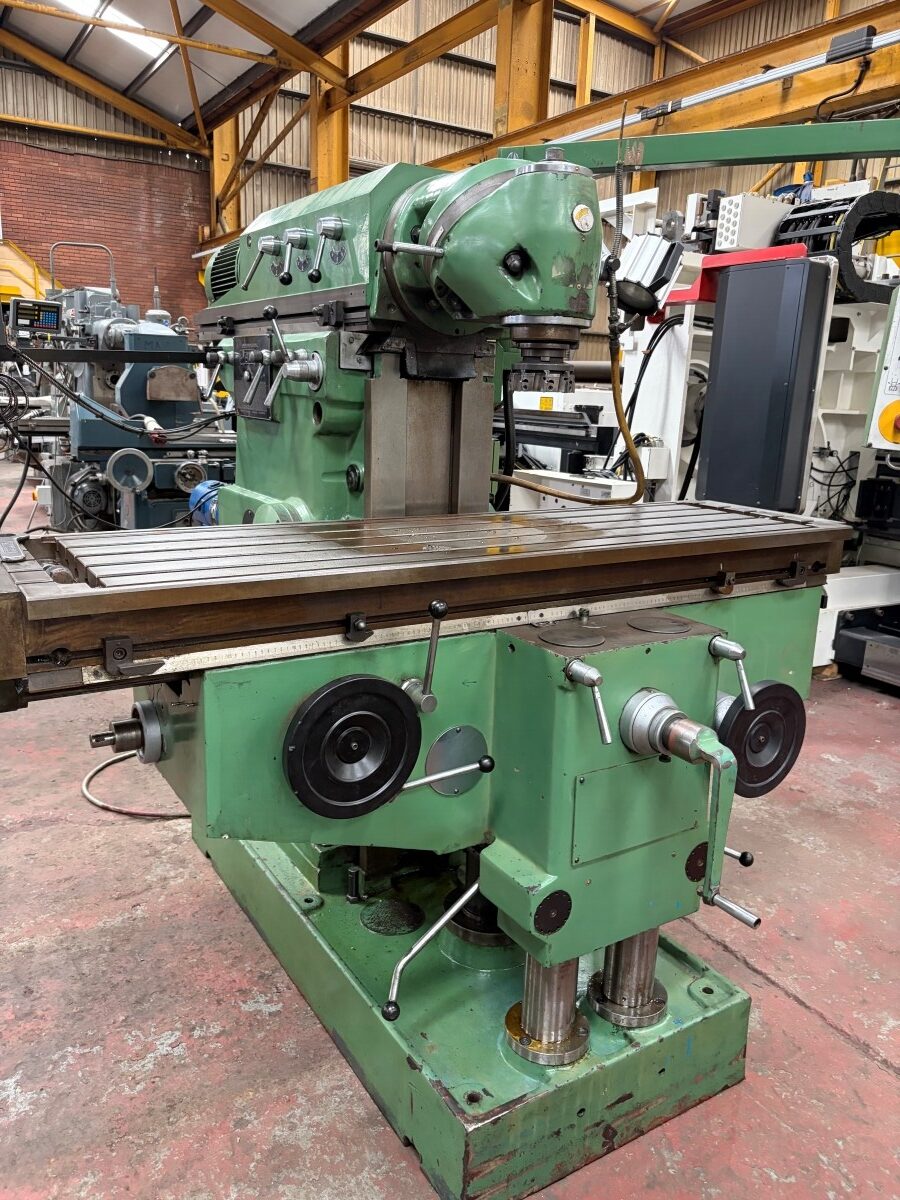

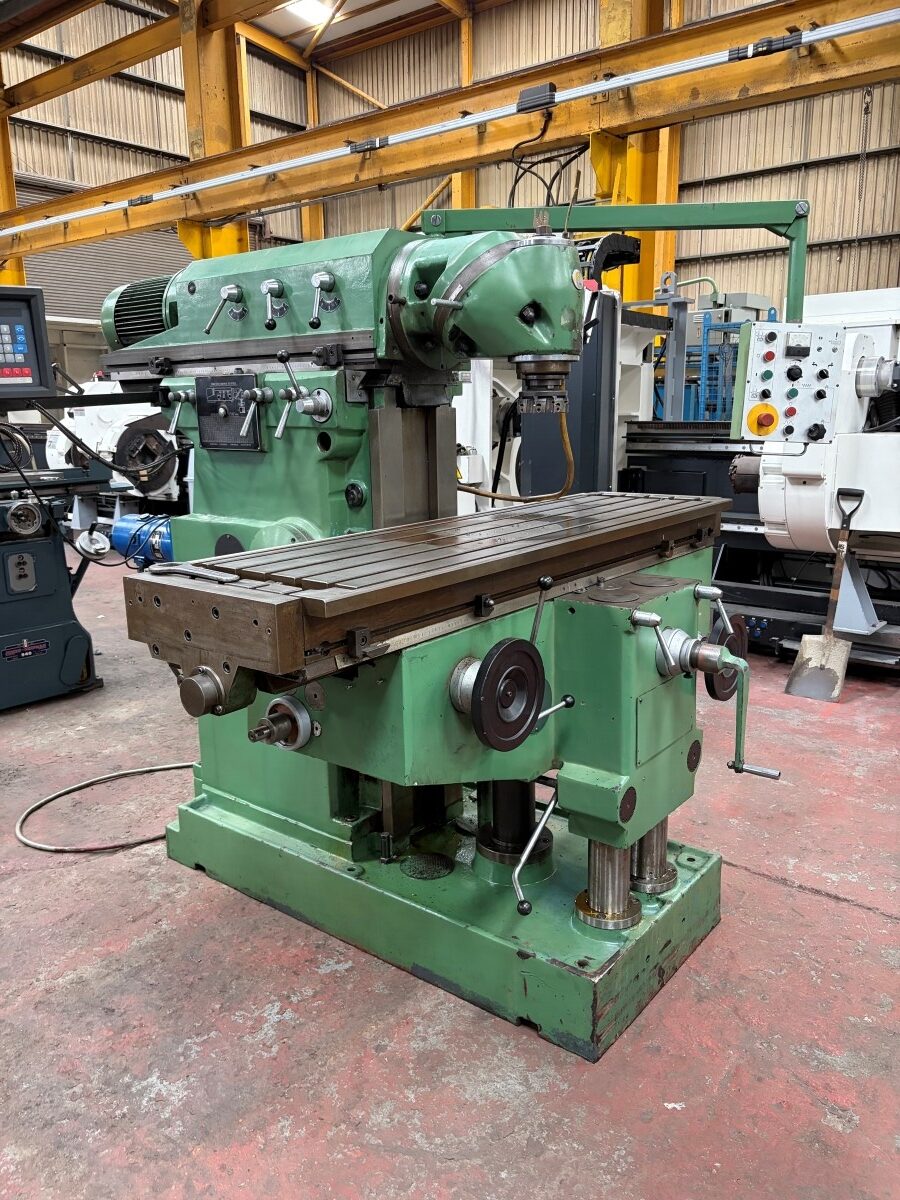

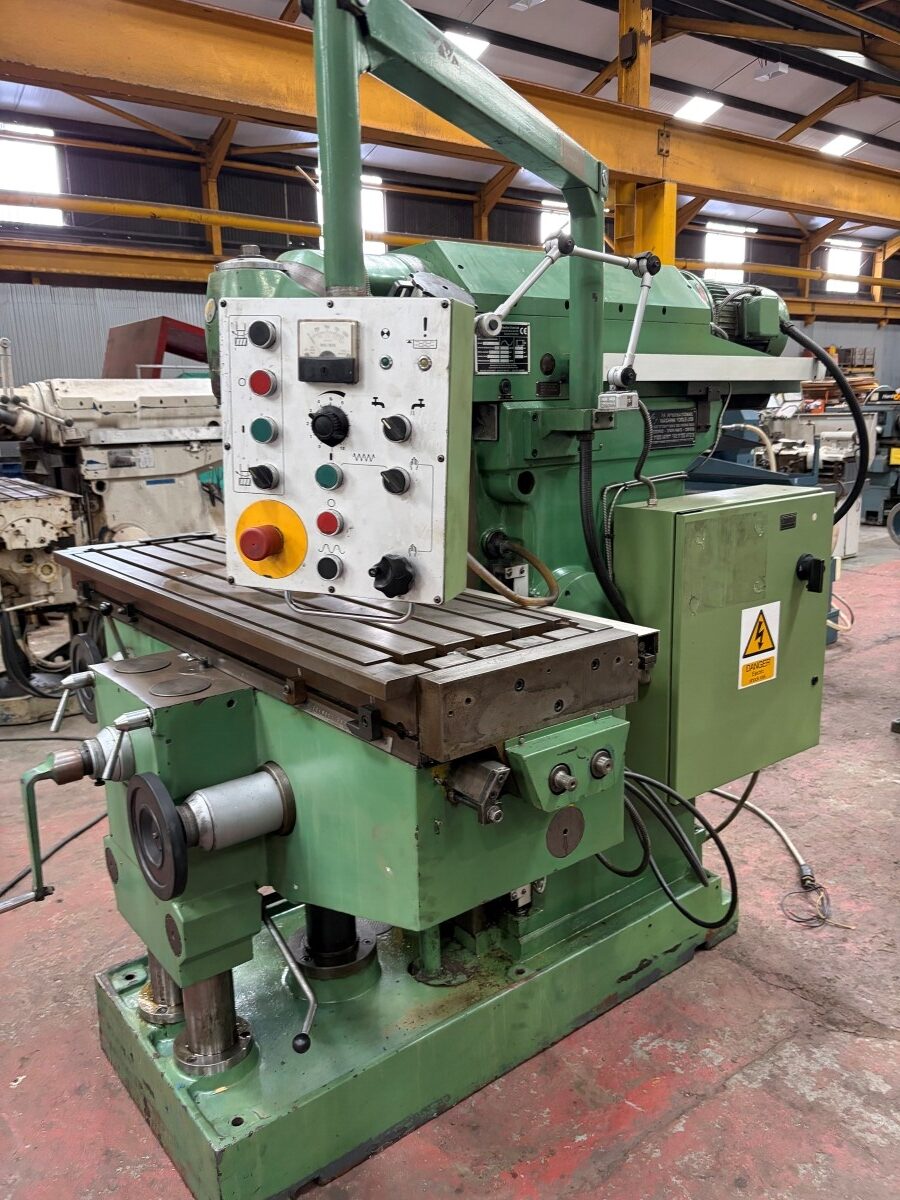

EUROPA CUP 5 UNIVERSAL MILLING MACHINE

Model:        CU5PC

Serial No:   96120054PC

MFD:          1997

Capacities:

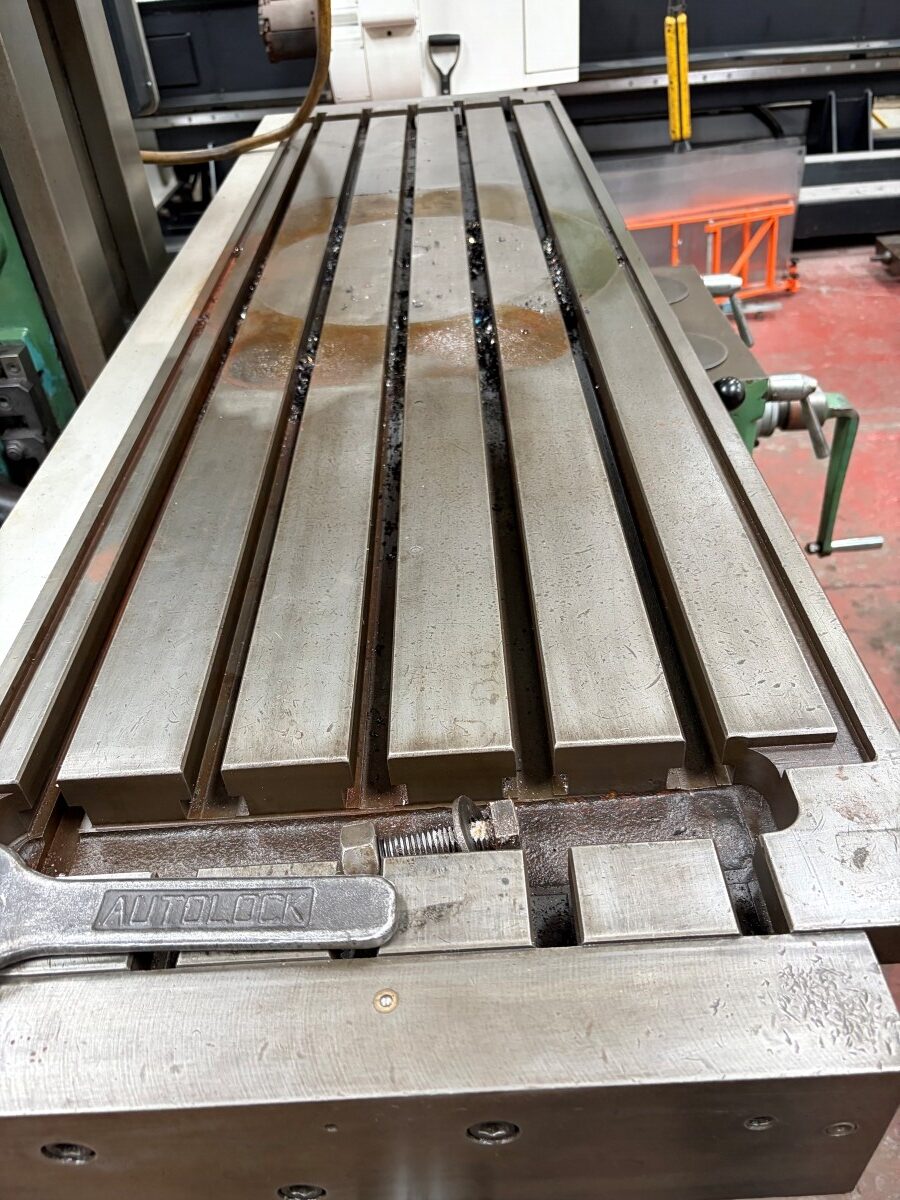

Table:                                      1635 x 460mm

Long Traverse:                       1300mm

Cross Traverse:                      650mm

Vertical Traverse:                   440mm

Feeds Long & Cross:             10 to 1000 mm/min                Rapids:2800mm/min

Feeds Vertical:                       5 to 500 mm/min                    Rapids: 1400mm/min

Spindle Speeds:                      30 to 2050 (27)

Spindle Taper:                        ISO 50

Maximum Table Load:           1800kg

Graduations:                           Metric

Electrics:                                415v, 3ph, 50 Cycles

Motor:                                     7.5kw

Complete With:

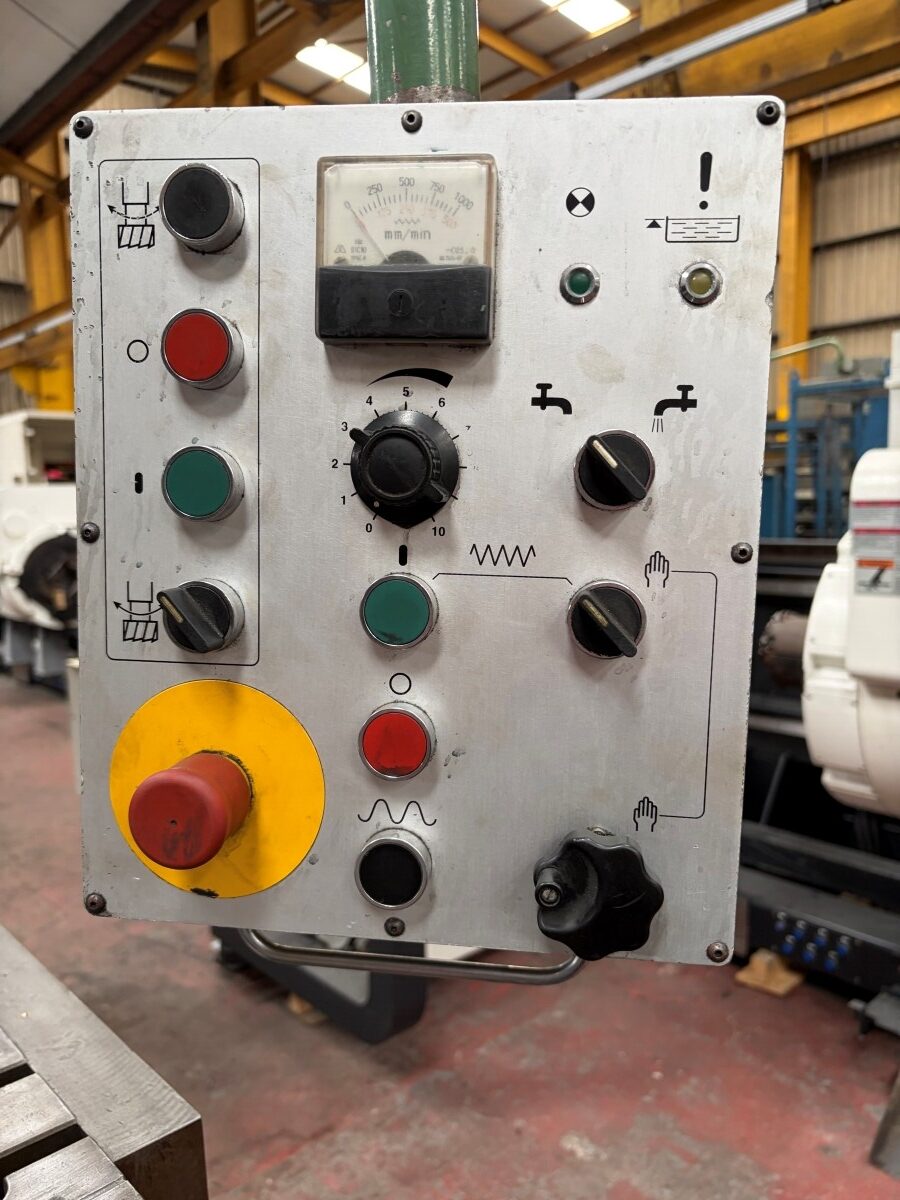

Pendent Control

Universal Head

Power Locking

Manual Locking,

Central Lubrication

Interlocking Table Guards

Approximate Dimensions:   2010 × 2621 × 1950 mm

Approximate Weight:          5000 kg
