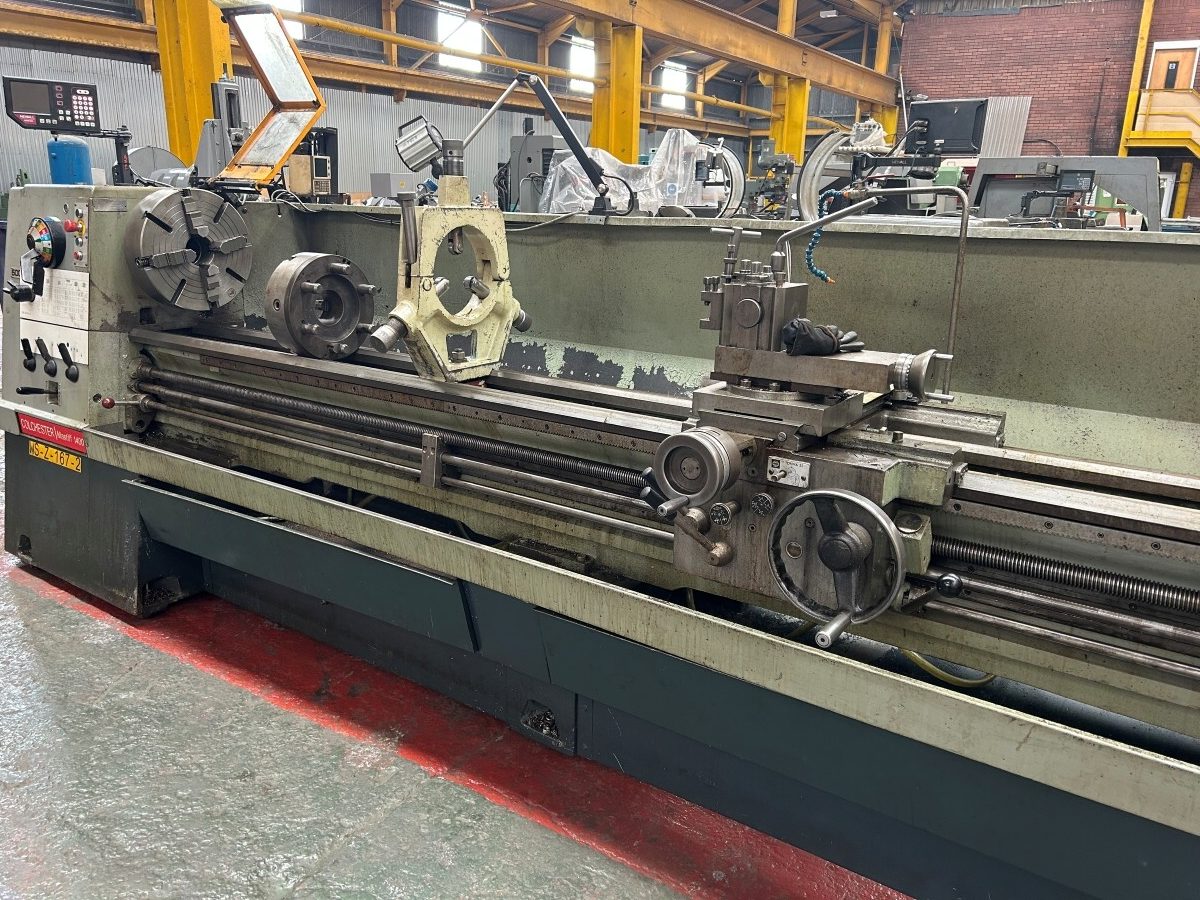

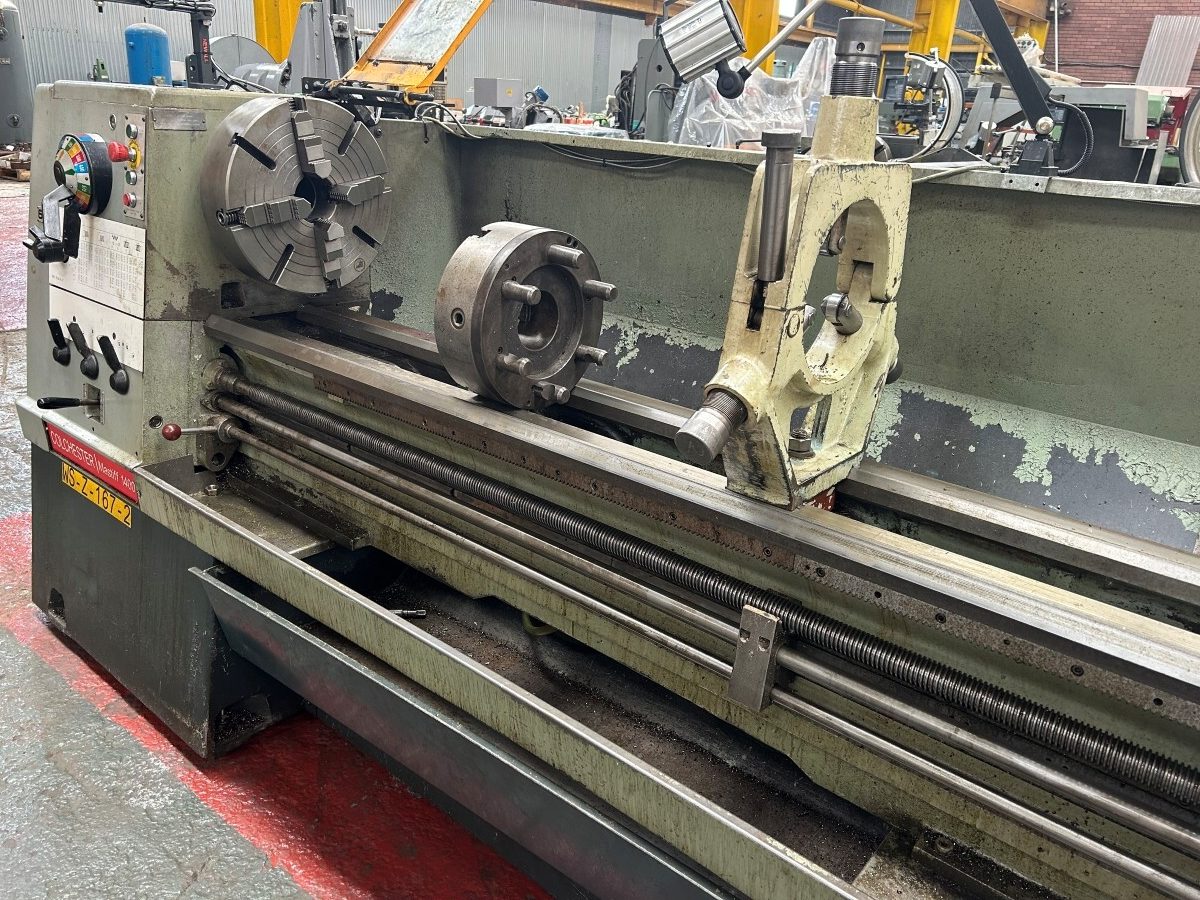

F4008 COLCHESTER MASTIFF 1400 X 120” STRAIGHT BED LATHE
Description
F4008 COLCHESTER MASTIFF 1400 X 120” STRAIGHT BED LATHE, Serial No 8/0071/02972DD, Swing Over Bed 535mm, Swing Over Saddle 370mm, Swing in Gap 810mm, Maximum distance Between Centres 3050mm, Spindle Speeds 18 – 1400rpm, Spindle Bore 90mm, Feeds, Sliding 0.06 – 1mm/rev, Surfacing 0.03 – 0.5mm, Screw Cutting TPI 2 – 72, MOD 0.3 – 3.5, Metric 0.4 – 14, DP 8 – 60, Tailstock Taper 5MT, Motor 12.5HP, Electrics 415v, 3ph, 50 Cycles, Complete With 3 & 4 Jaw Chuck, 2 No Fixed 3 Point Steady, 2 Axis DRO, Quick Change Tool Post & Tool Holders, Chuck Guard & Rear Splash Guard, Emergency Stop, Approximate Dimensions 4500 x 1300 x 1500mm, Approximate Weight 3500kg
