Description

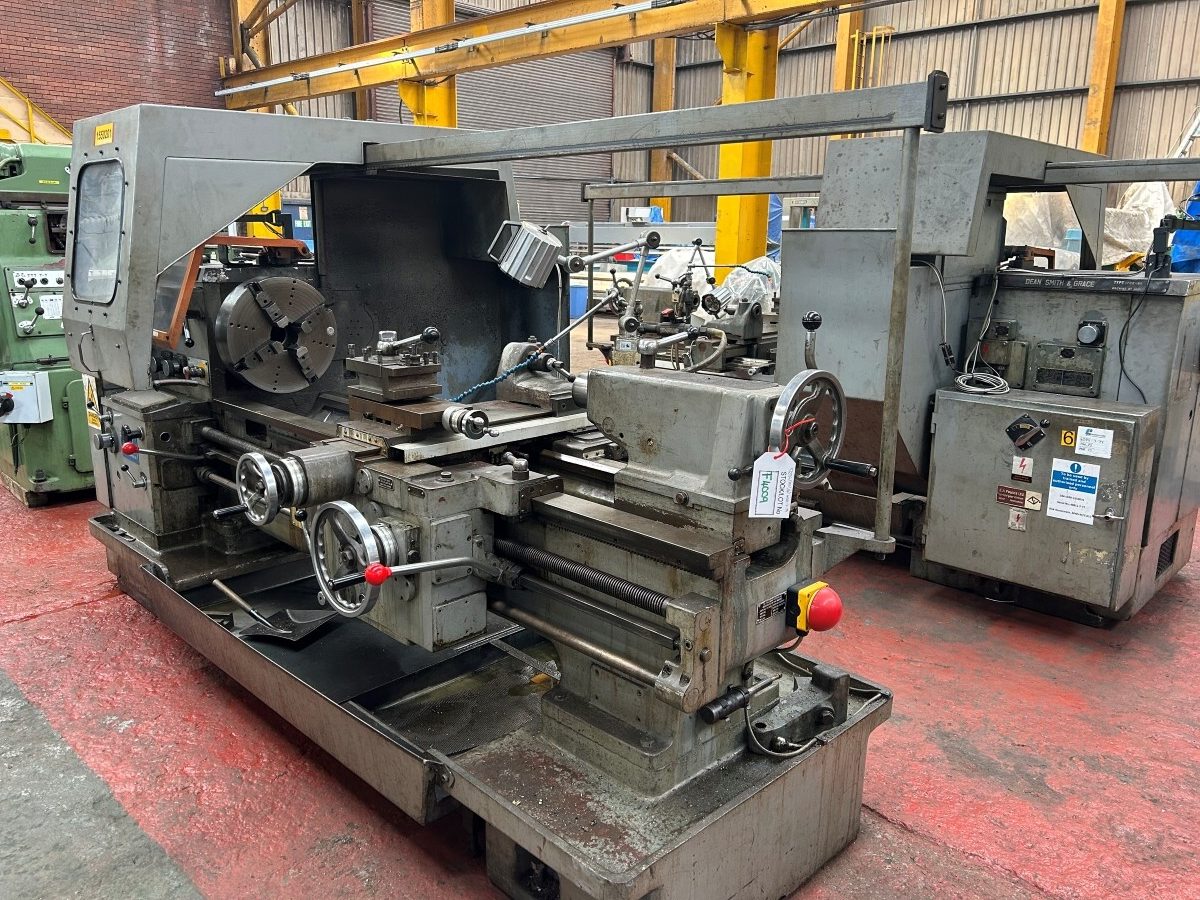

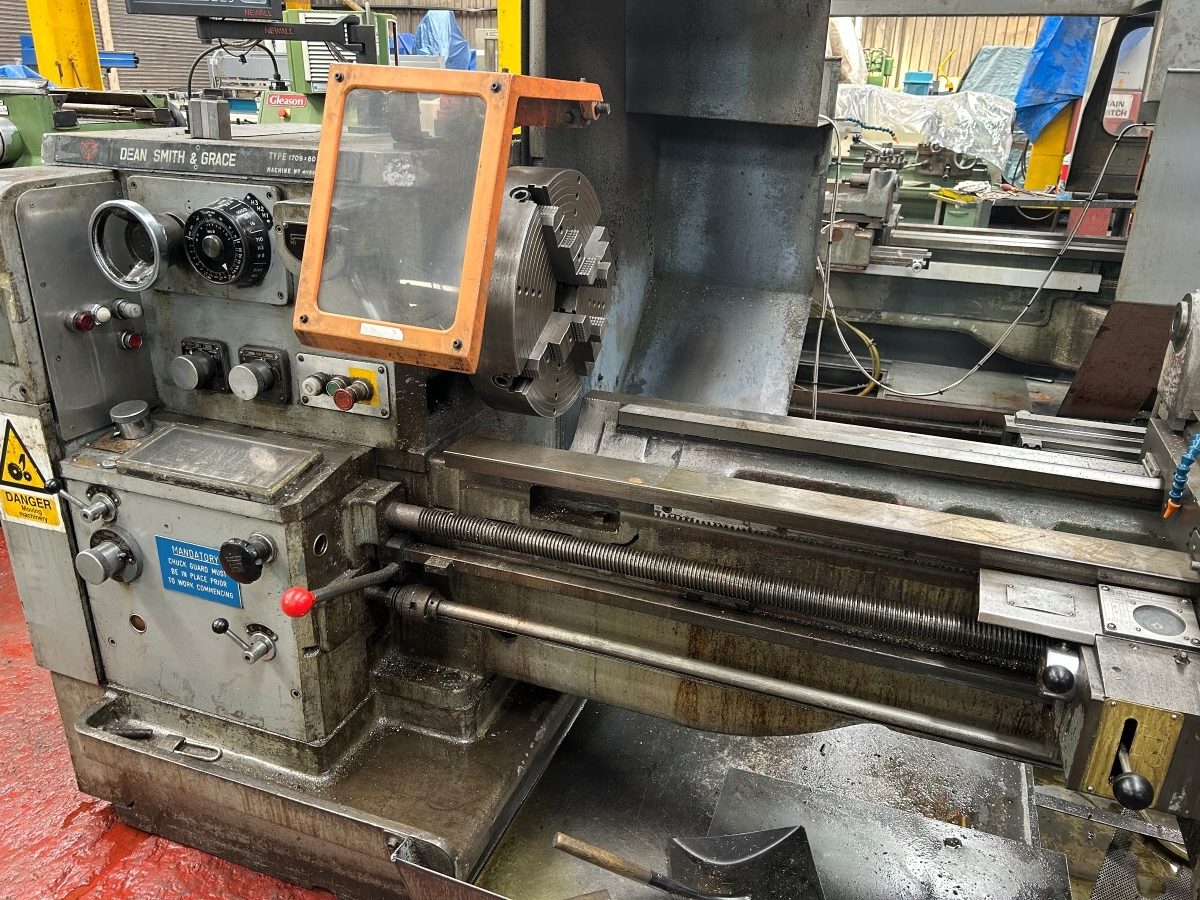

Make:             DEAN SMITH & GRACE 1709 X 60 GAP BED CENTRE LATHE

Model:              Type 1709

Serial No 41189-3-79,

Swing Over Bed 430mm,

Swing Over Saddle 230mm,

Swing in Gap 660mm,

Maximum Distance Between Centres 1524mm,

Spindle Speeds 31.5 – 1400rpm,

Spindle Bore 87mm,

Feeds Sliding 0.05 – 0.2mm/rev, Surfacing 0.025 – 0.1mm/rev,

Screw Cutting TPI 2 -56, MM Pitch 0.5 – 14,

Motor 10HP, Electrics 415v, 3ph, 50 Cycles,

Complete With 4 Jaw Chuck, Taper Turning, 2 Axis DRO, Fixed 3 Point Steady, Cross Slide Drill Attachment, 4 Way Tool Post, Sliding Guard, Chuck Guard, Rear Splash Guard,

Approximate Dimensions 3300 x 1950 x 1800mm,

Approximate Weight 2500kg
