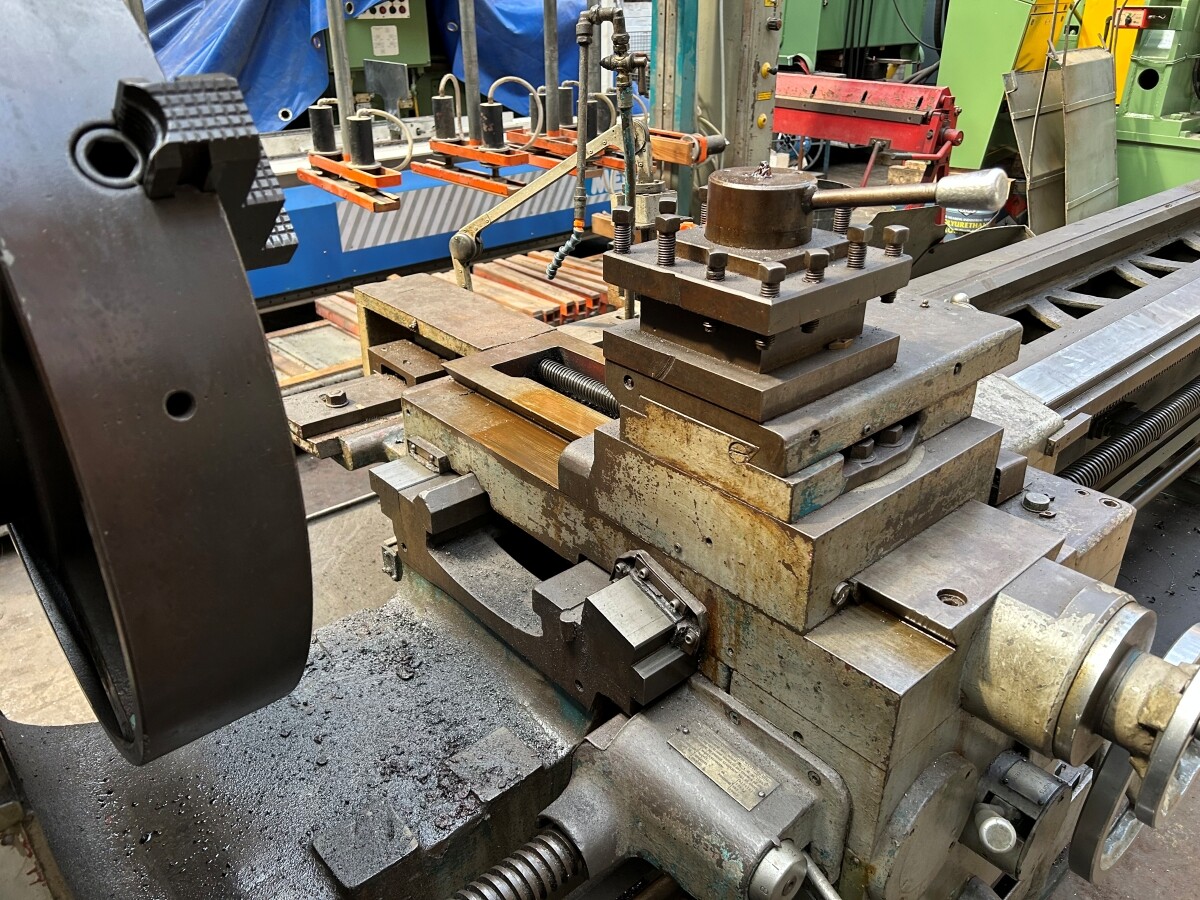

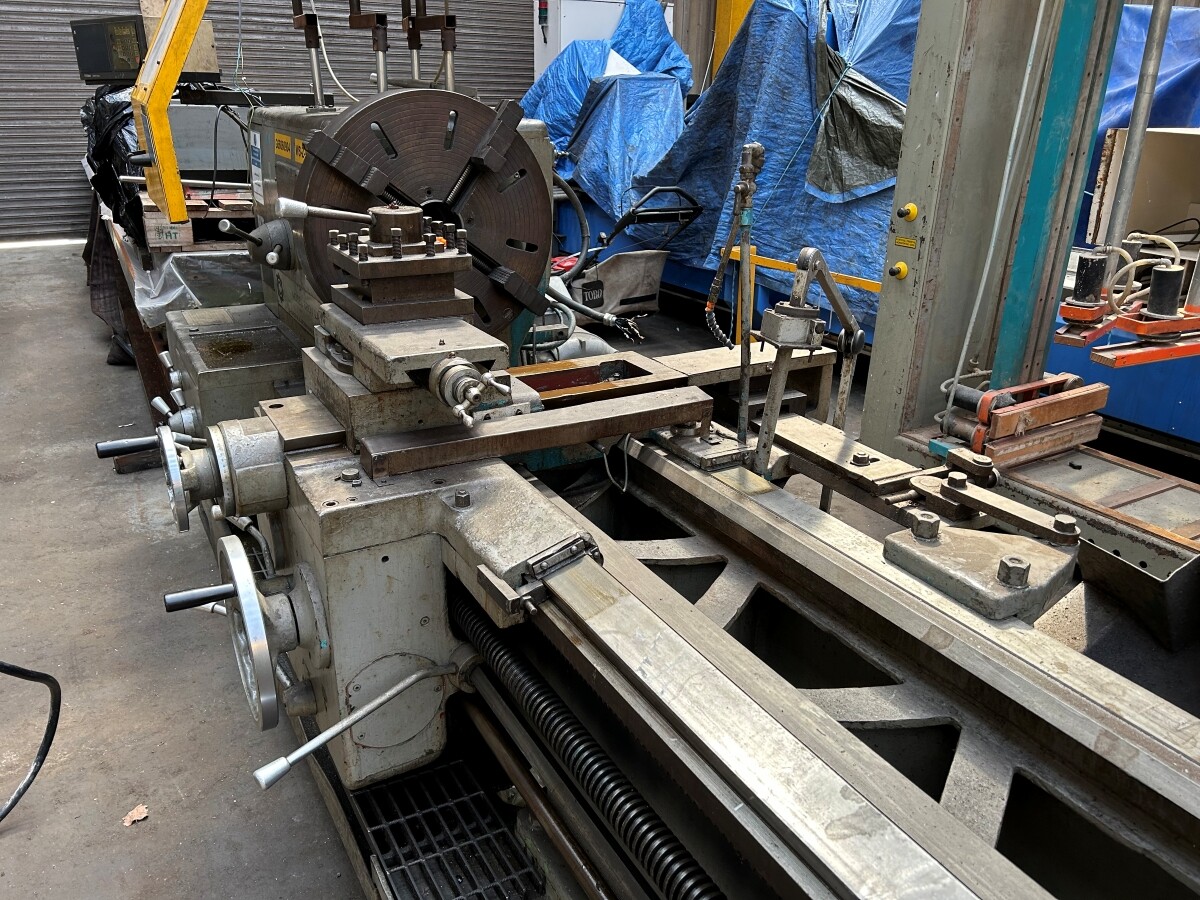

F4012 CHURCHILL DENHAM GAP BED CENTRE LATHE
Description
F4012 CHURCHILL DENHAM GAP BED CENTRE LATHE, Model SR10V, Serial No G66060904, Swing Over Bed 635mm, Swing Over Saddle 420mm, Swing in Gap 980 x 305mm, Maximum Distance Between Centres 3960mm, Spindle Speeds 15 – 1000rpm, Spindle Bore 97mm, Feeds, Surfacing 0.0022 – 0.125”/rev, Sliding 0.0011 – 0.0625”/rev, Screw Cutting TPI 2 – 80, Metric 0.5 – 16mm Pitch, MOD 0.25 – 6, DP 8 – 152, Motor 20HP, Electrics 415v, 3ph, 50 Cycles, Complete With 610mm 4 Jaw Chuck, 230mm 3 Point Fixed Steady, 4 Way Tool Post, 2 Axis DRO, Interlocked Sliding Chuck Guard, Rear Splash Guard, Lovo Light, Coolant, Approximate Dimensions 5800 x 2000 x 1800mm, Approximate Weight 5500kg
