Description

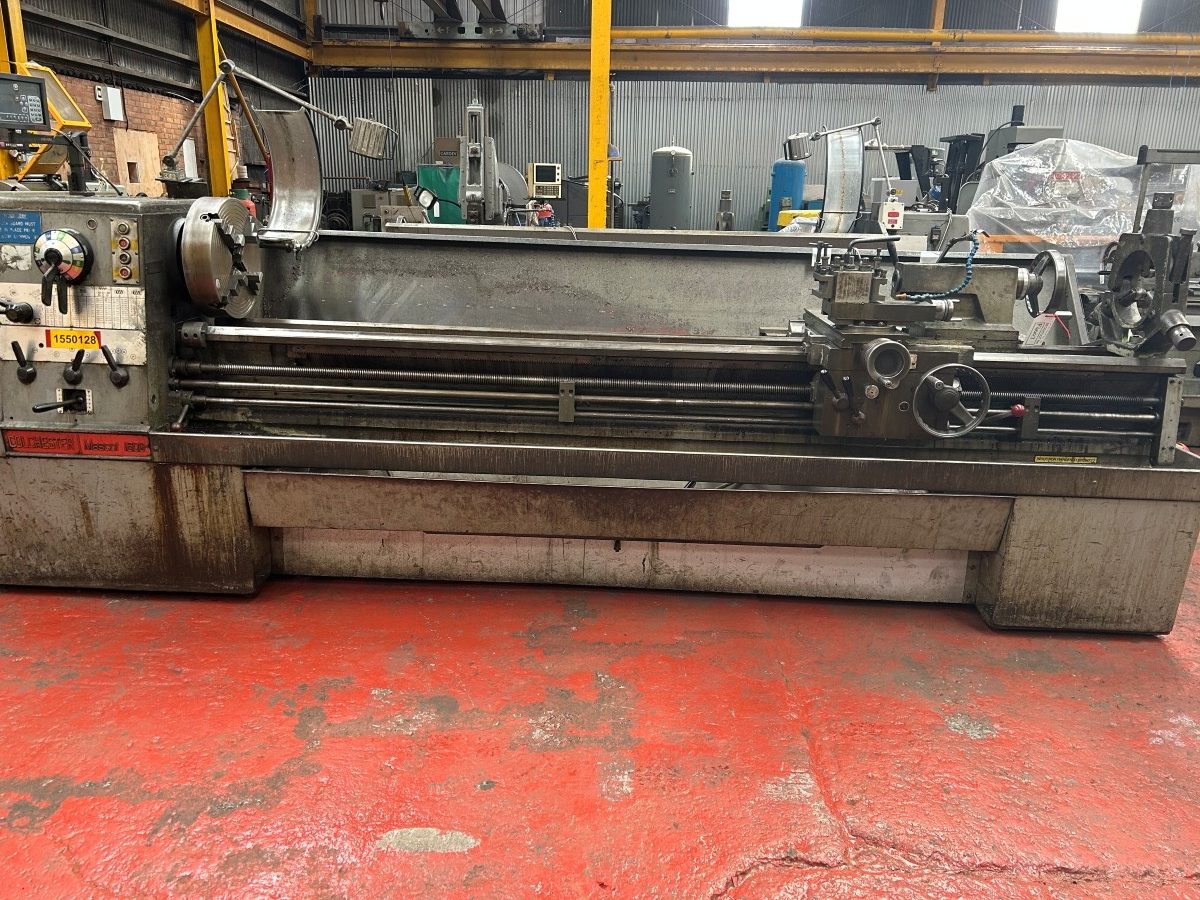

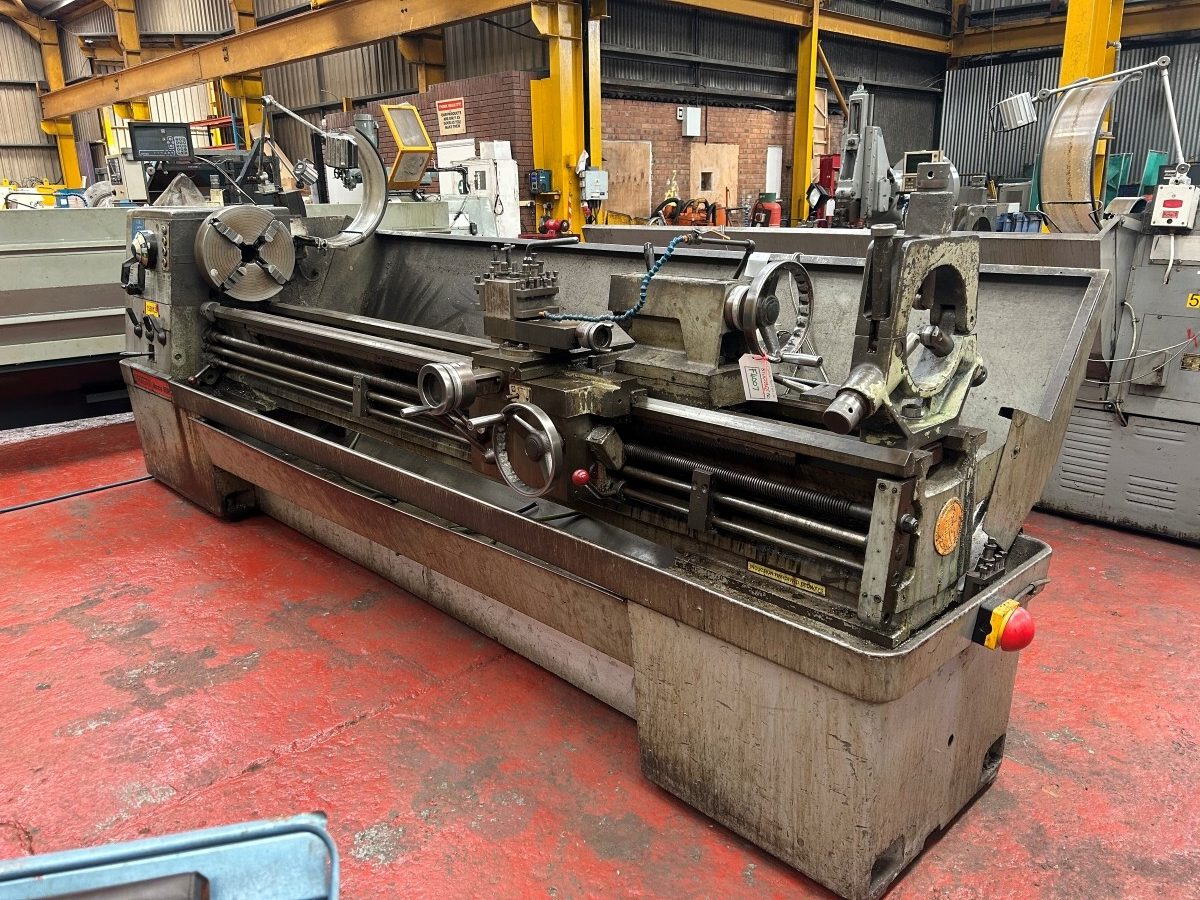

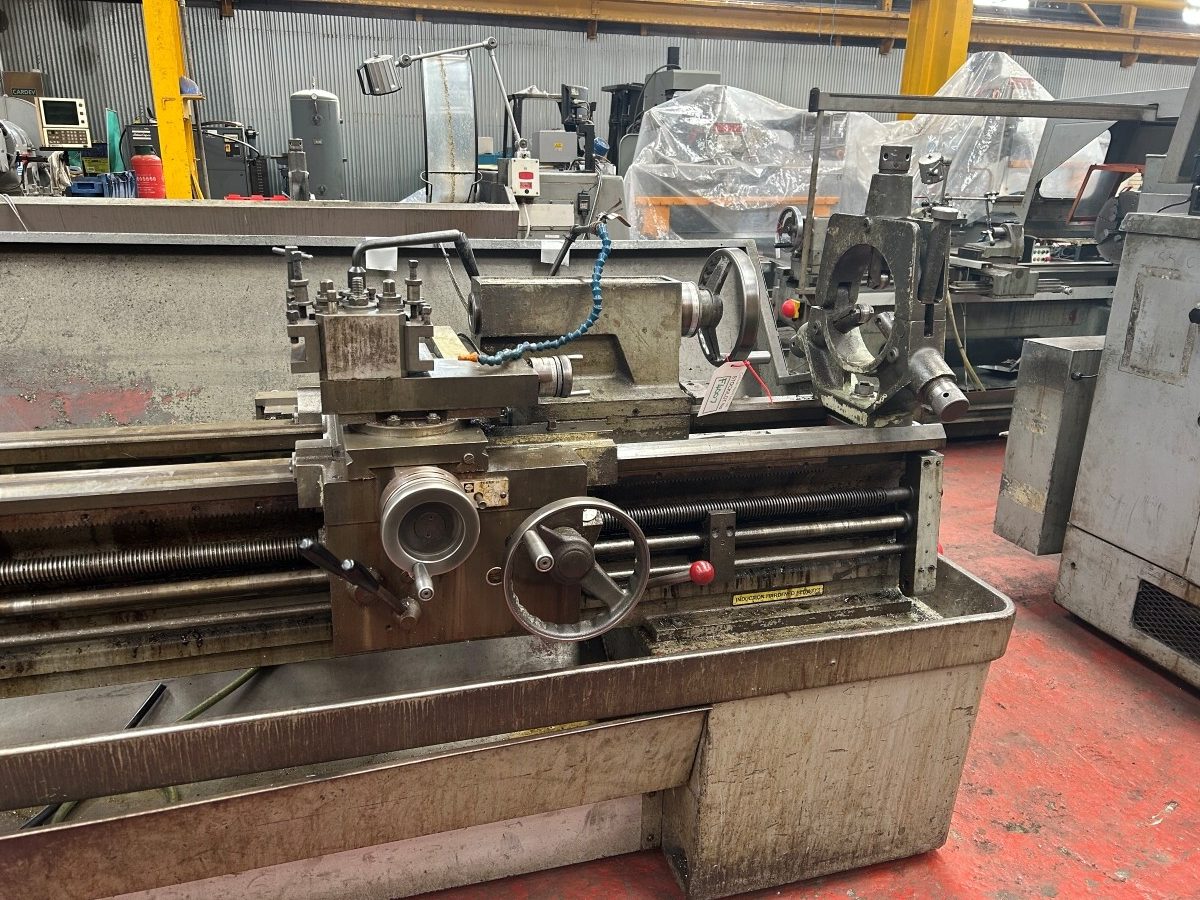

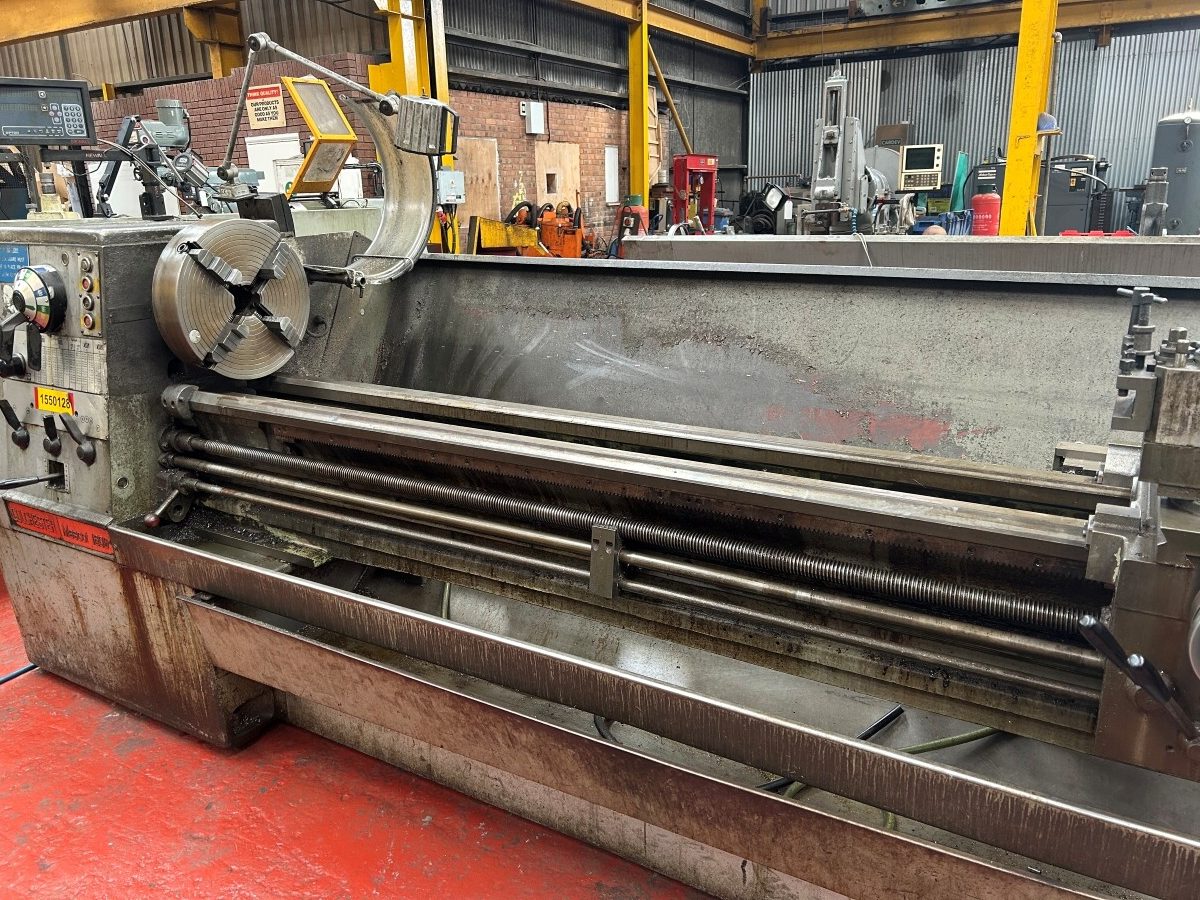

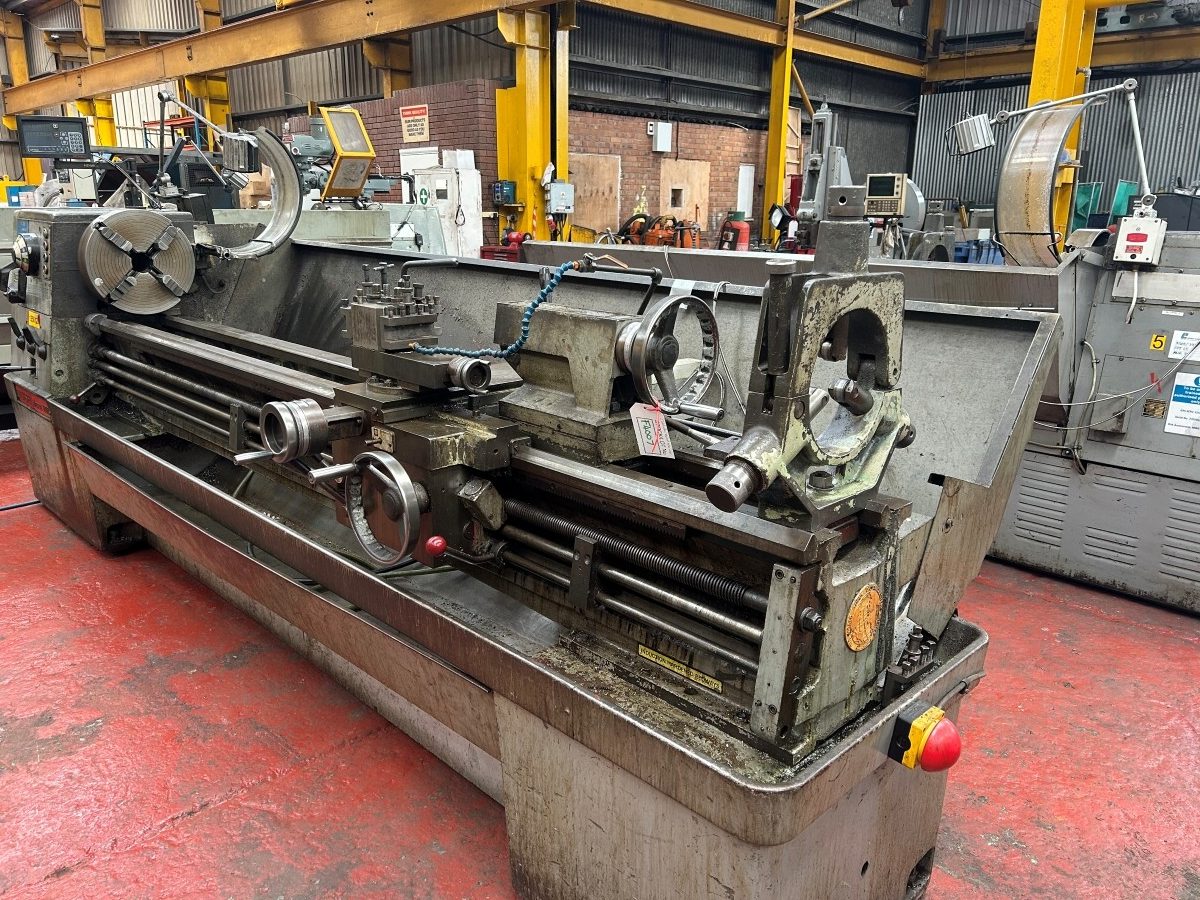

Make:        COLCHESTER MASCOT 1600 X 100” GAP BED LATHE

Model:         Mascot 1600

Serial No 7/0053/10131,

Swing Over Bed 431mm,

Swing Over Saddle 266mm,

Swing in Gap 711mm,

Maximum distance Between Centres 2540mm,

Spindle Speeds 20 – 1600rpm,

Spindle Bore 74mm,

Feeds, Sliding 00.6 – 1mm/rev, Surfacing 0.03 – 0.5mm/rev,

Screw Cutting TPI 4 – 72, MOD 8 – 60, Metric 0.4 – 14mm Pitch, DP 0.3 – 3.5,

Tailstock Taper 5MT,

Motor 12.5HP, Electrics 415v, 3ph, 50 Cycles,

Complete With 4 Jaw Chuck, Fixed 3 Point Steady, Taper Turning, 2 Axis DRO, Quick Change Tool Post & Tool Holders, Chuck Guard & Rear Splash Guard, Emergency Stop,

Approximate Dimensions 4000 x 1300 x 1500mm,

Approximate Weight 2750kg
