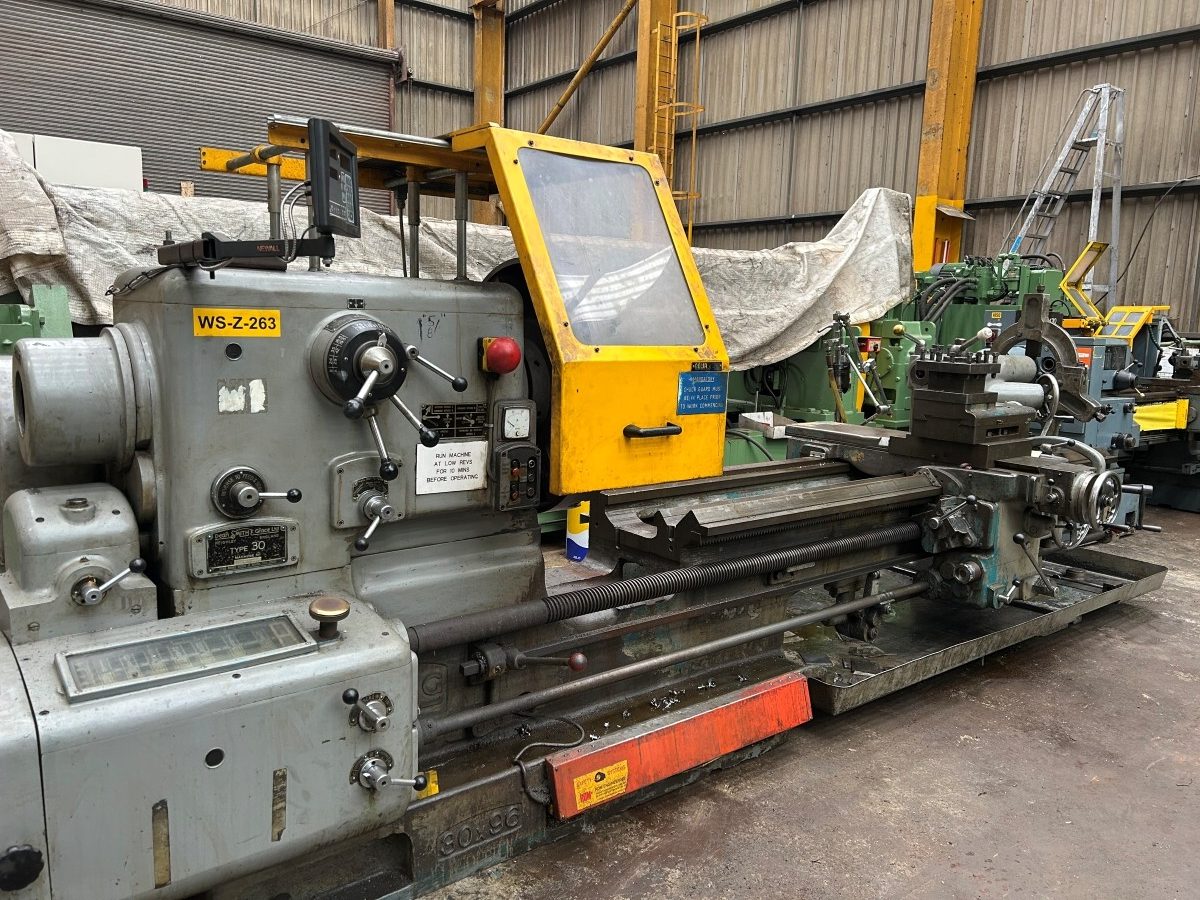

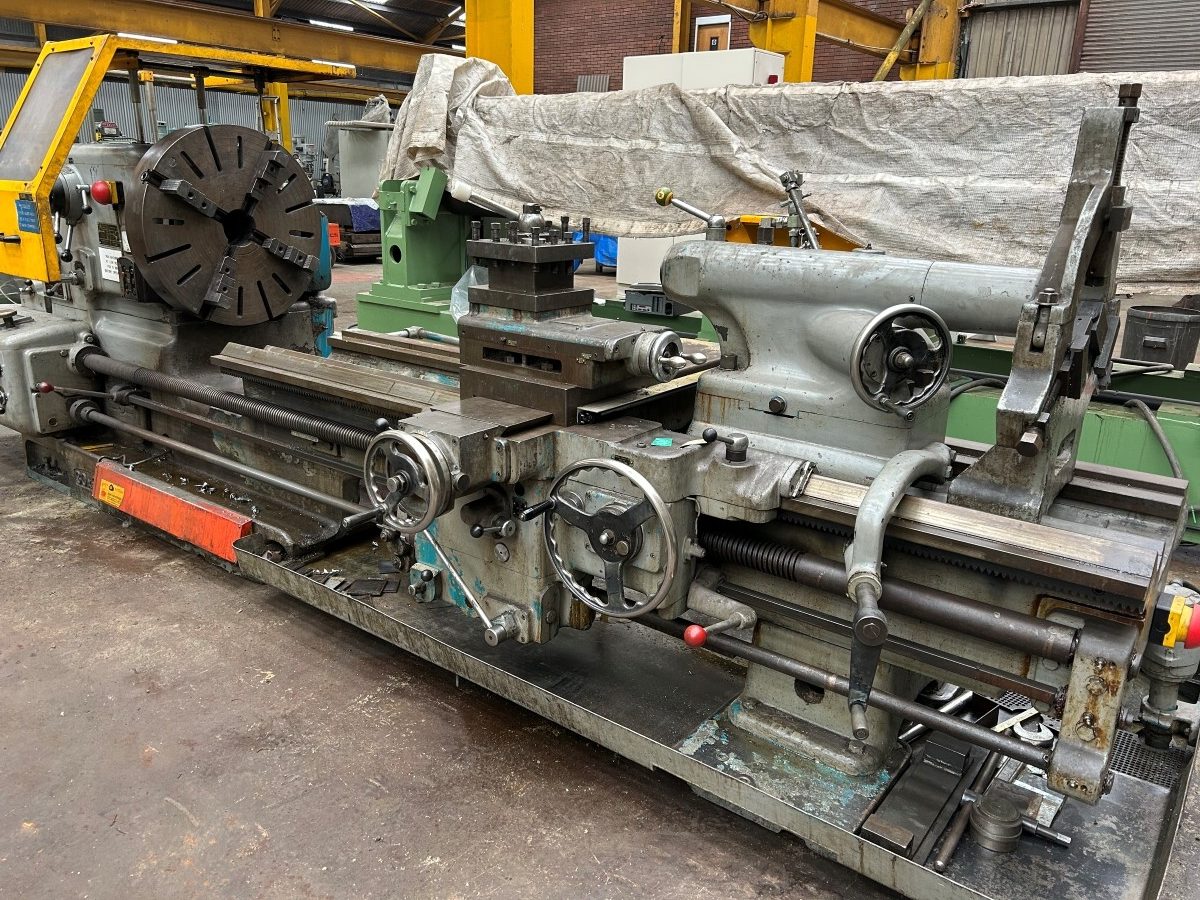

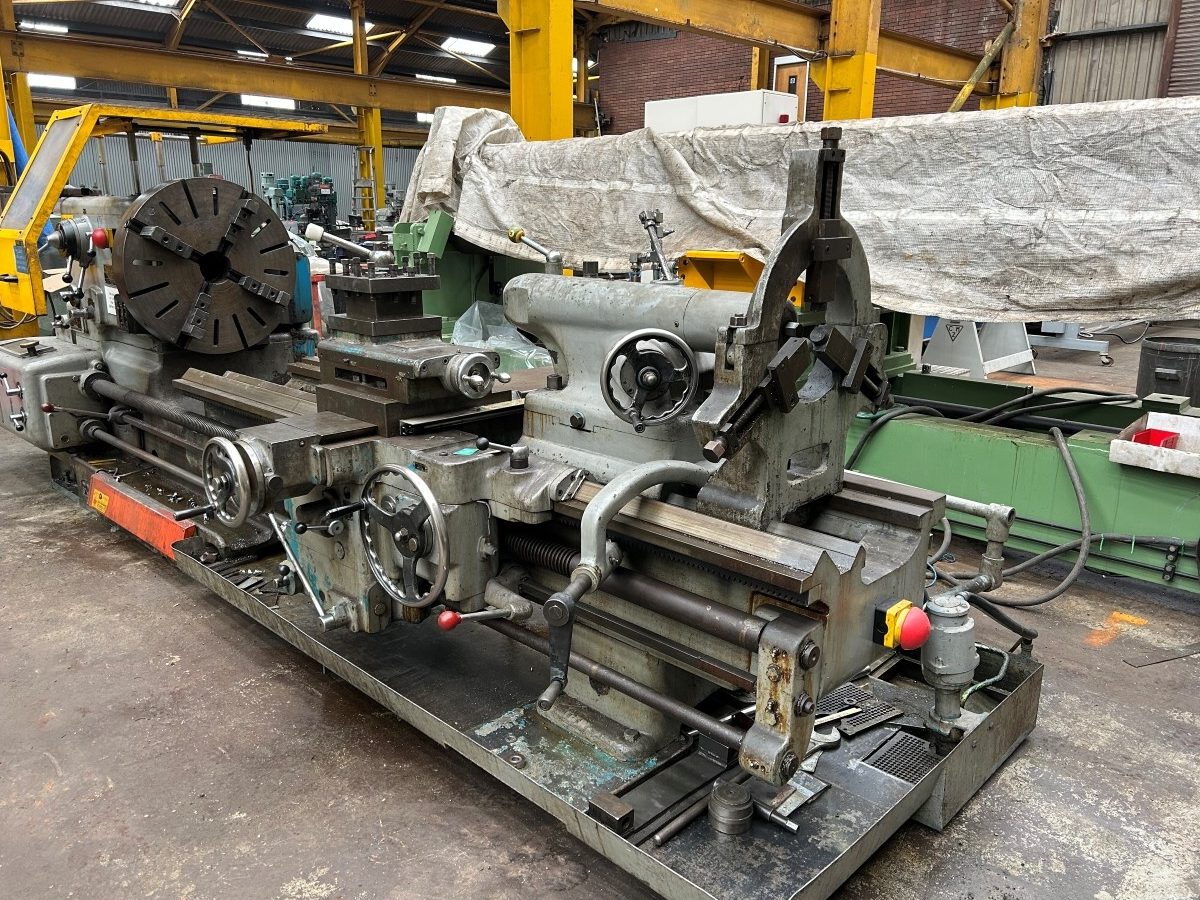

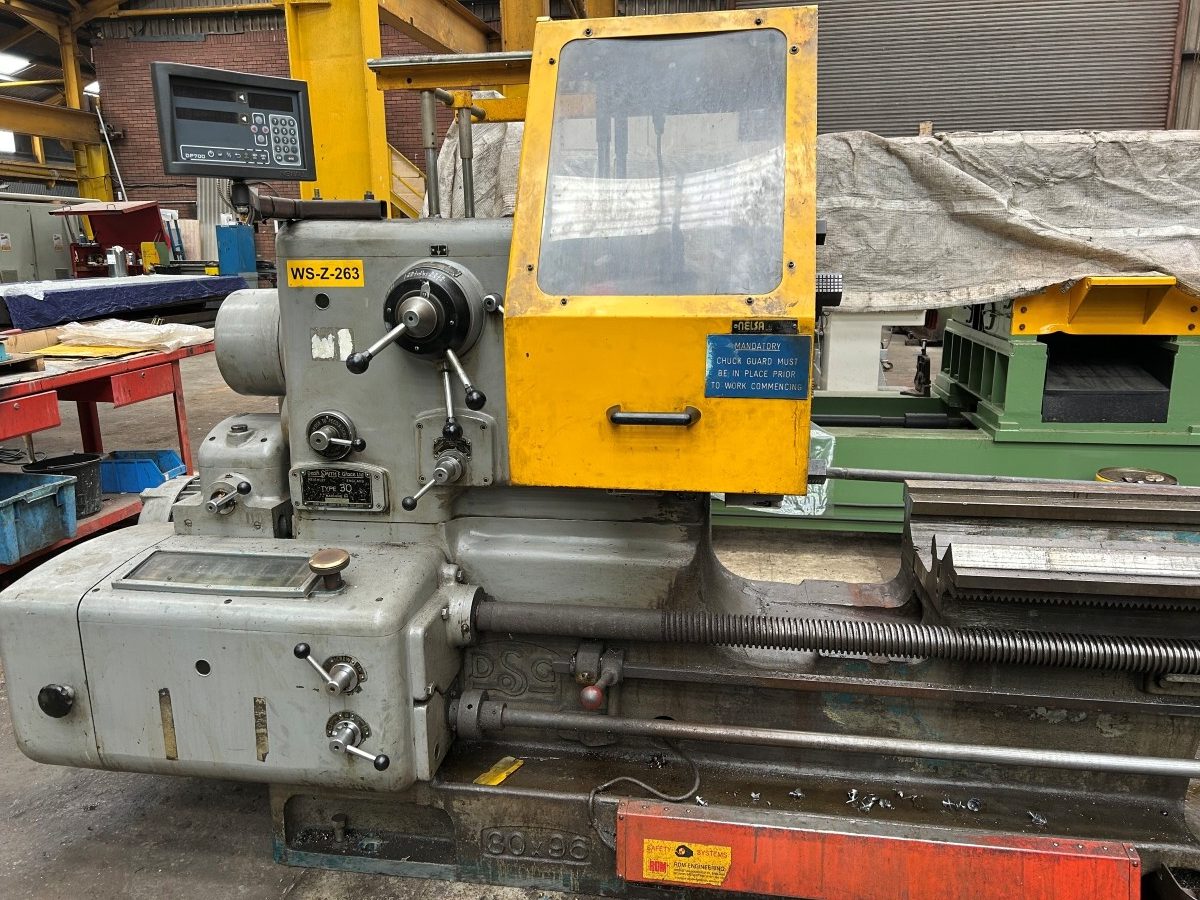

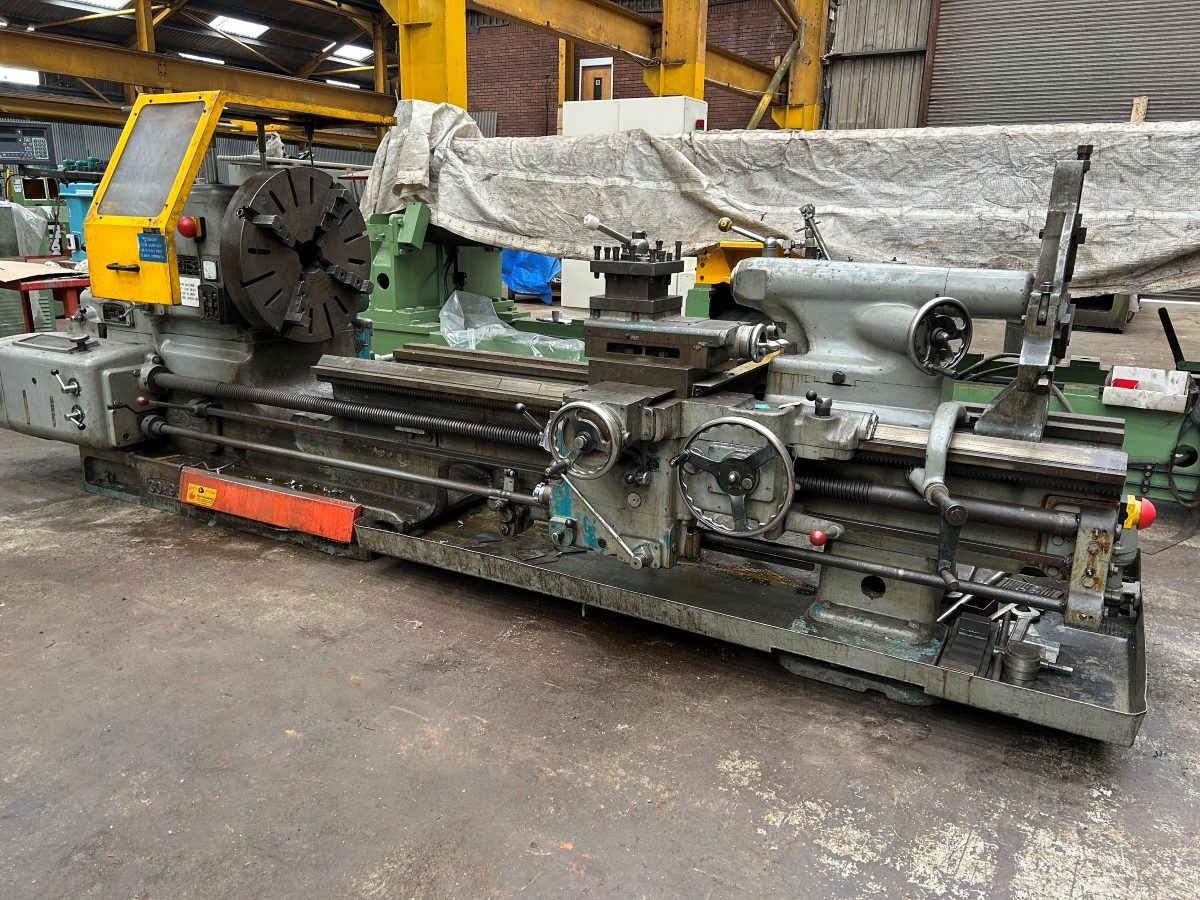

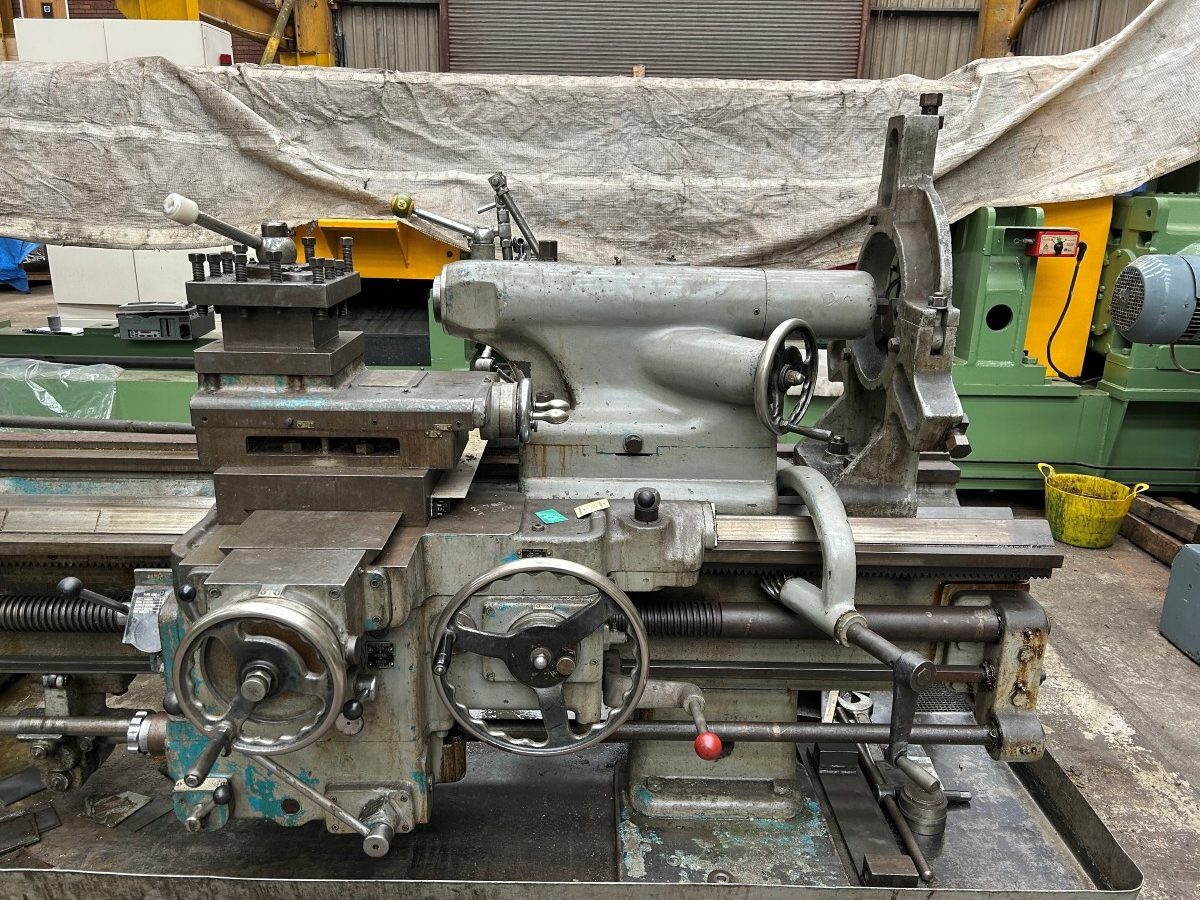

F4005 DEAN SMITH & GRACE TYPE 30 X 96 GAP BED LATHE,
Dean Smith & Grace Type 30 x 96 Gap Bed Lathe, Capacity 840 x 2438mm
Description
Make: DEAN SMITH & GRACE TYPE 30 X 96 GAP BED LATHE
Model: Type 30
Type 30, Serial No 34108-6-62,
Swing Over Bed 840mm,
Swing Over Saddle 530mm,
Swing in Gap 1330mm,
Maximum Distance Between Centres 2438mm,
Spindle Speeds 5.3 – 420rpm,
Spindle Bore 112mm,
Feeds, Sliding 0.002 – 0.1235” Per Rev, Surfacing 0.001 – 0.06175” Per Rev,
Screw Cutting 1 – 56 TPI,
Motor 25HP, Electrics 415v, 3ph, 50 Cycles,

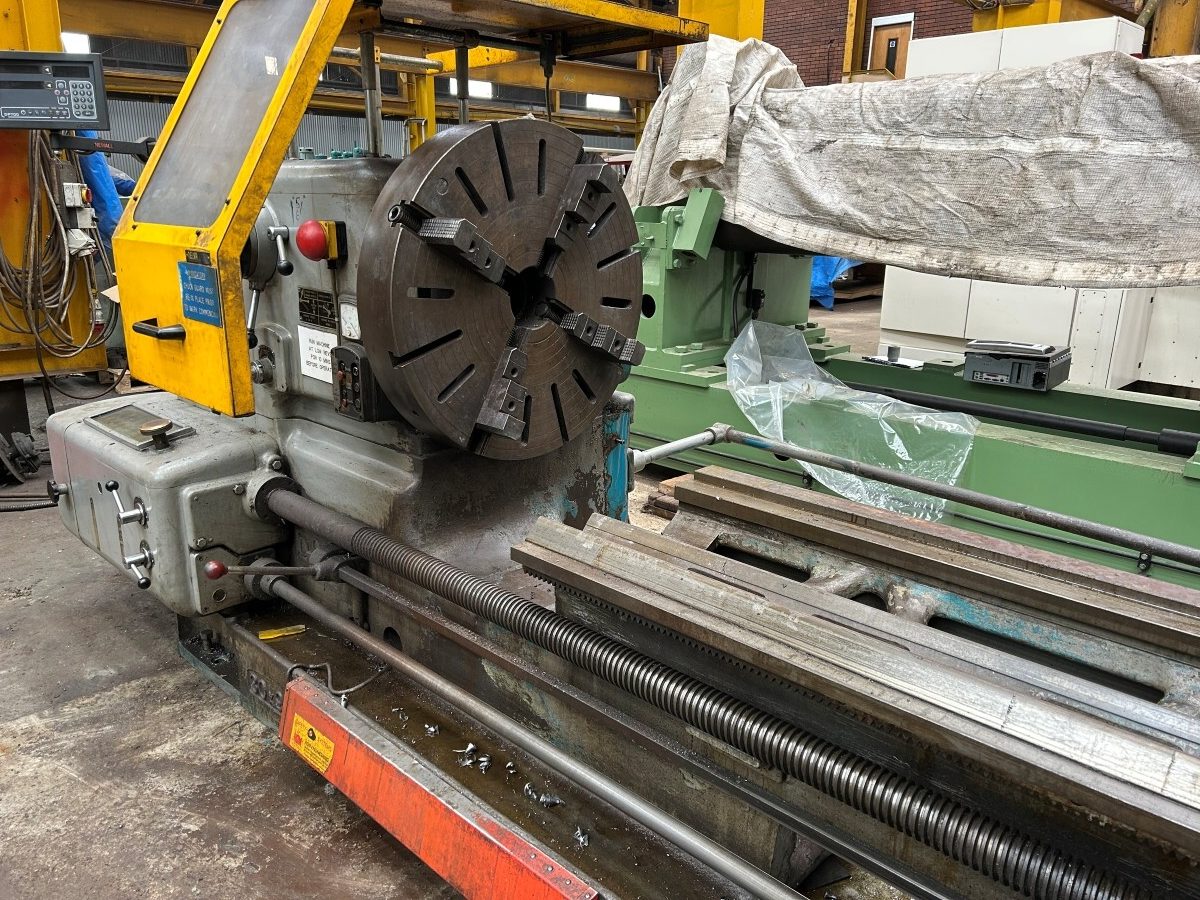

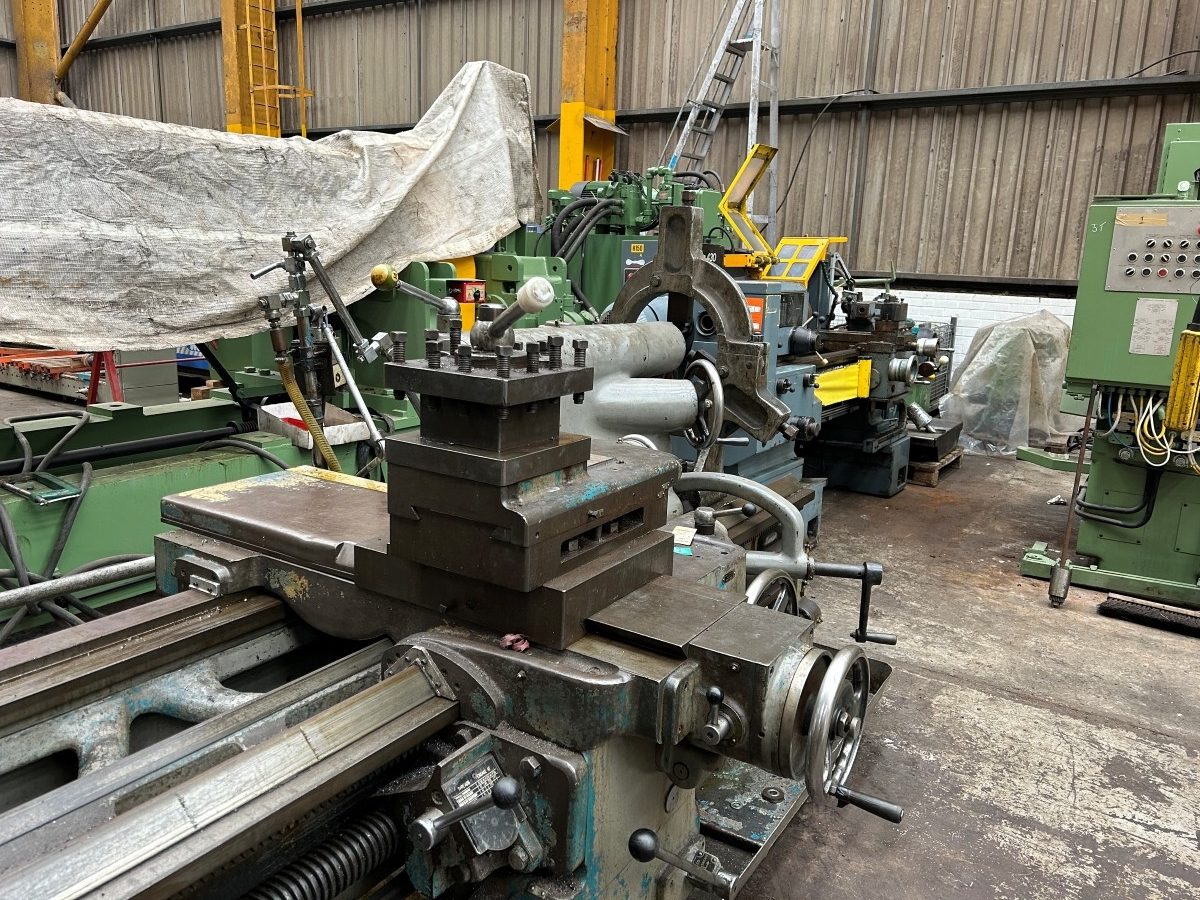

Complete With 760mm 4 Jaw Chuck, 300mm 3 Point Fixed Steady, 4 Way Tool Post, 2 Axis Newall DRO, Interlocked Sliding Chuck Guard, Kick Interlock Spindle Brake, Coolant, Lovo Light,
Approximate Dimensions 5400 x 2150 x 1800mm,
Approximate Weight 6000kg
