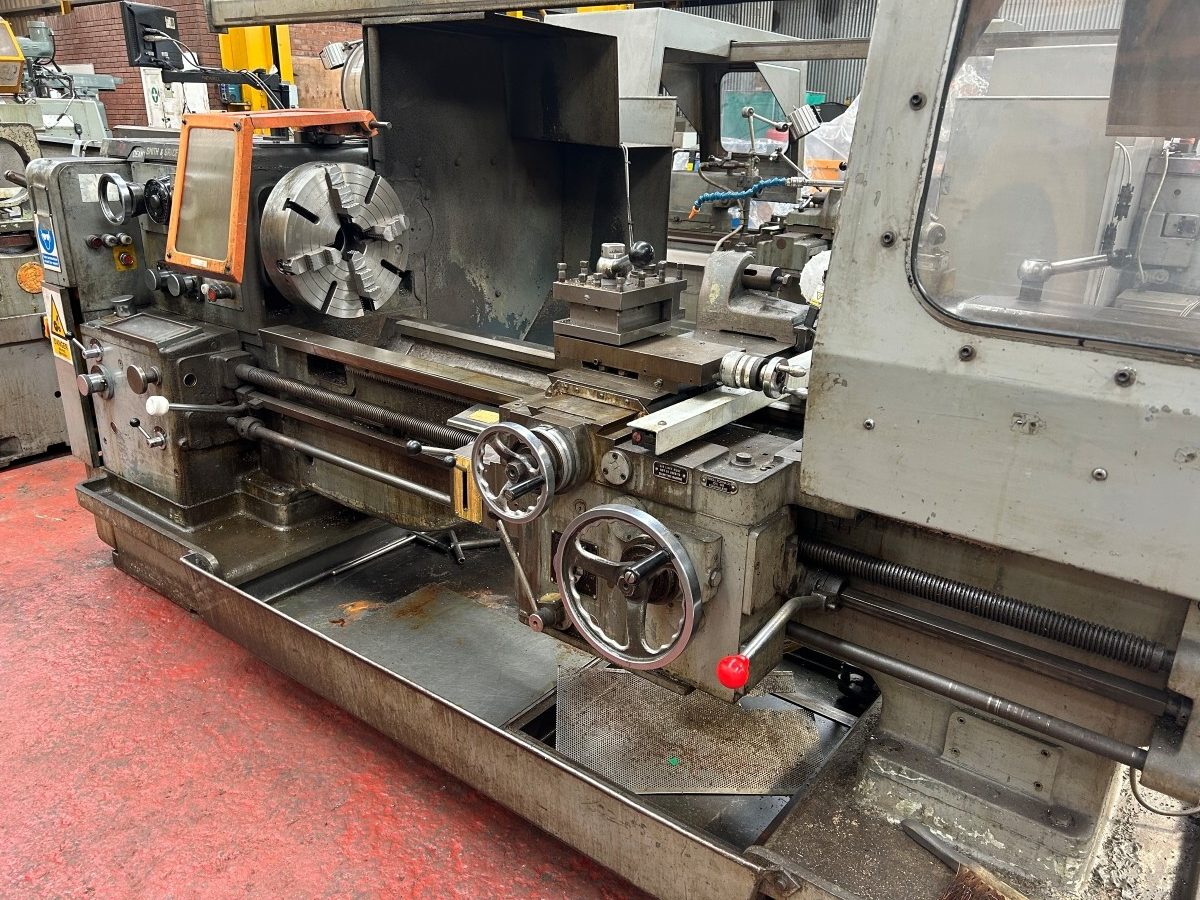

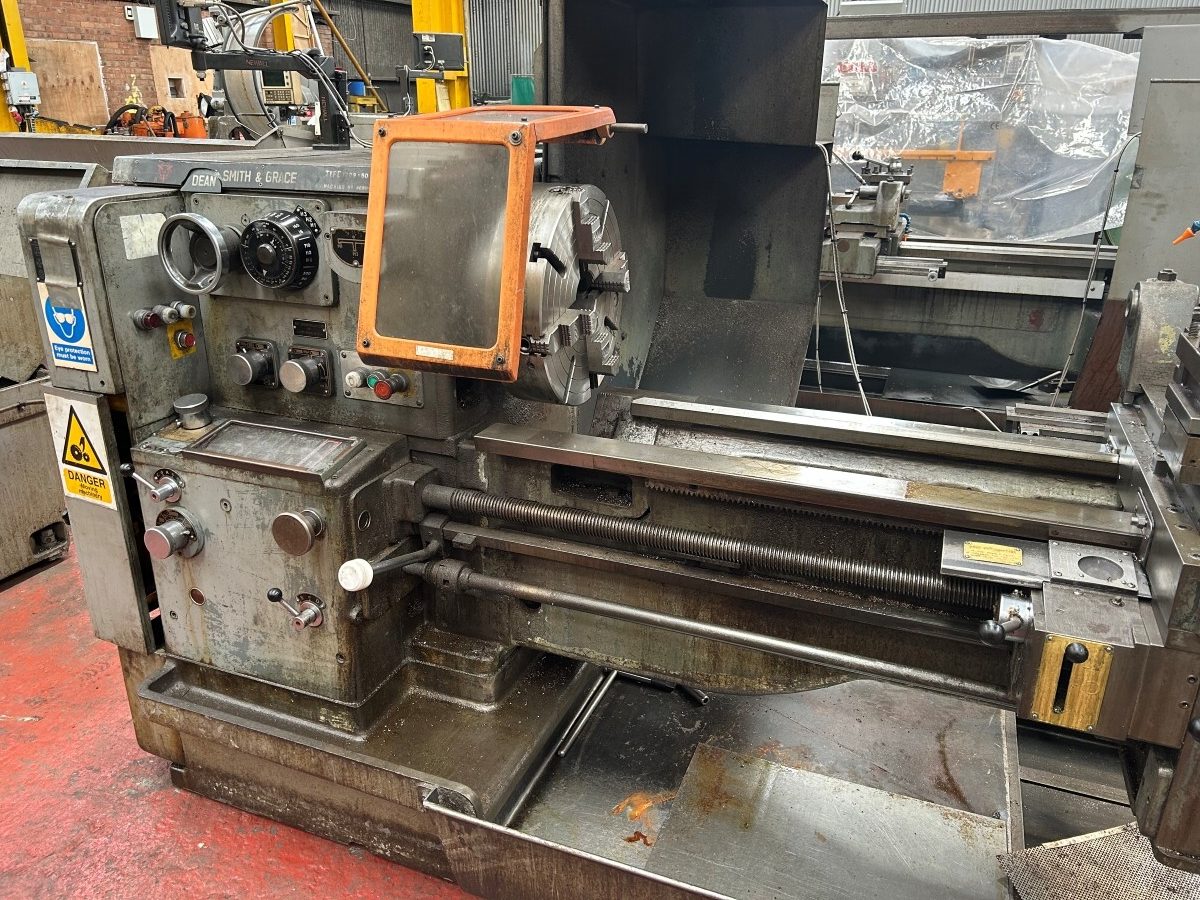

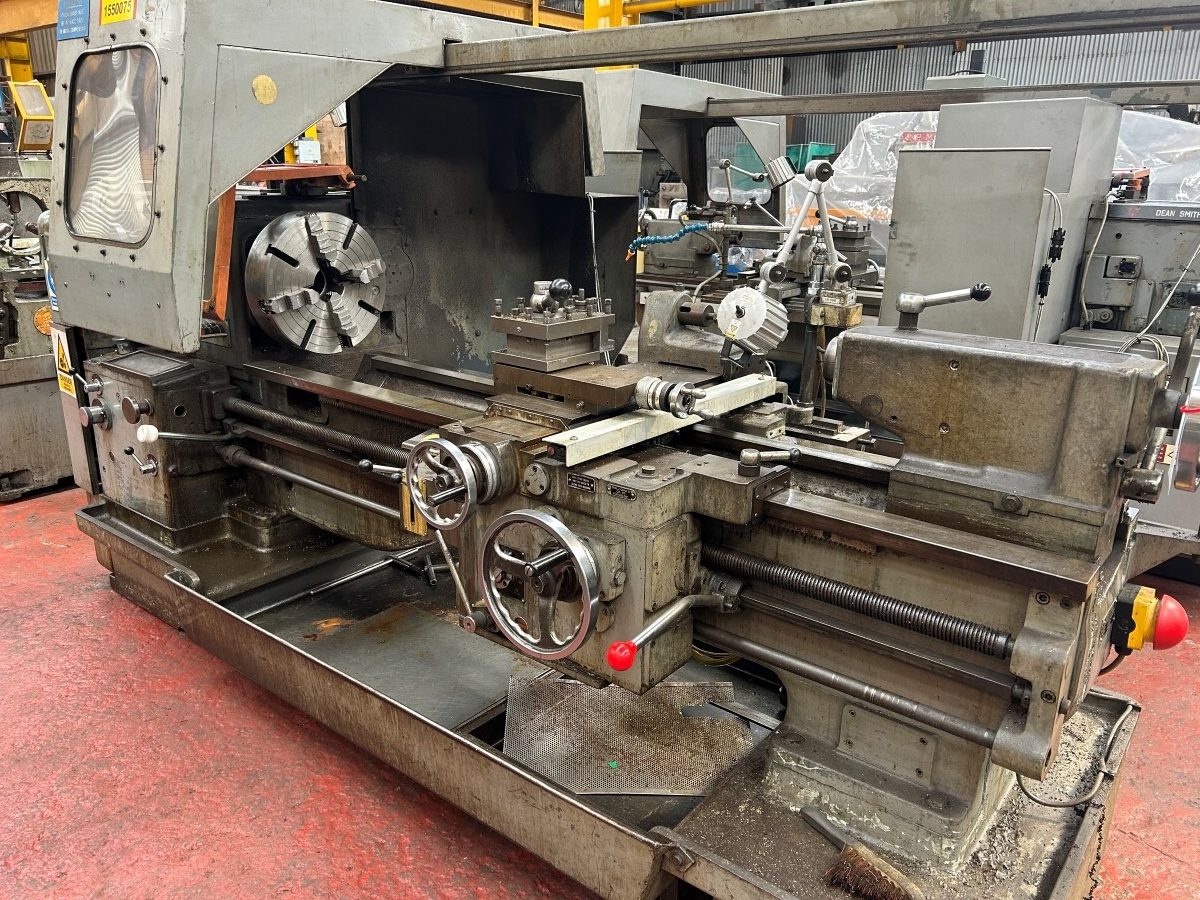

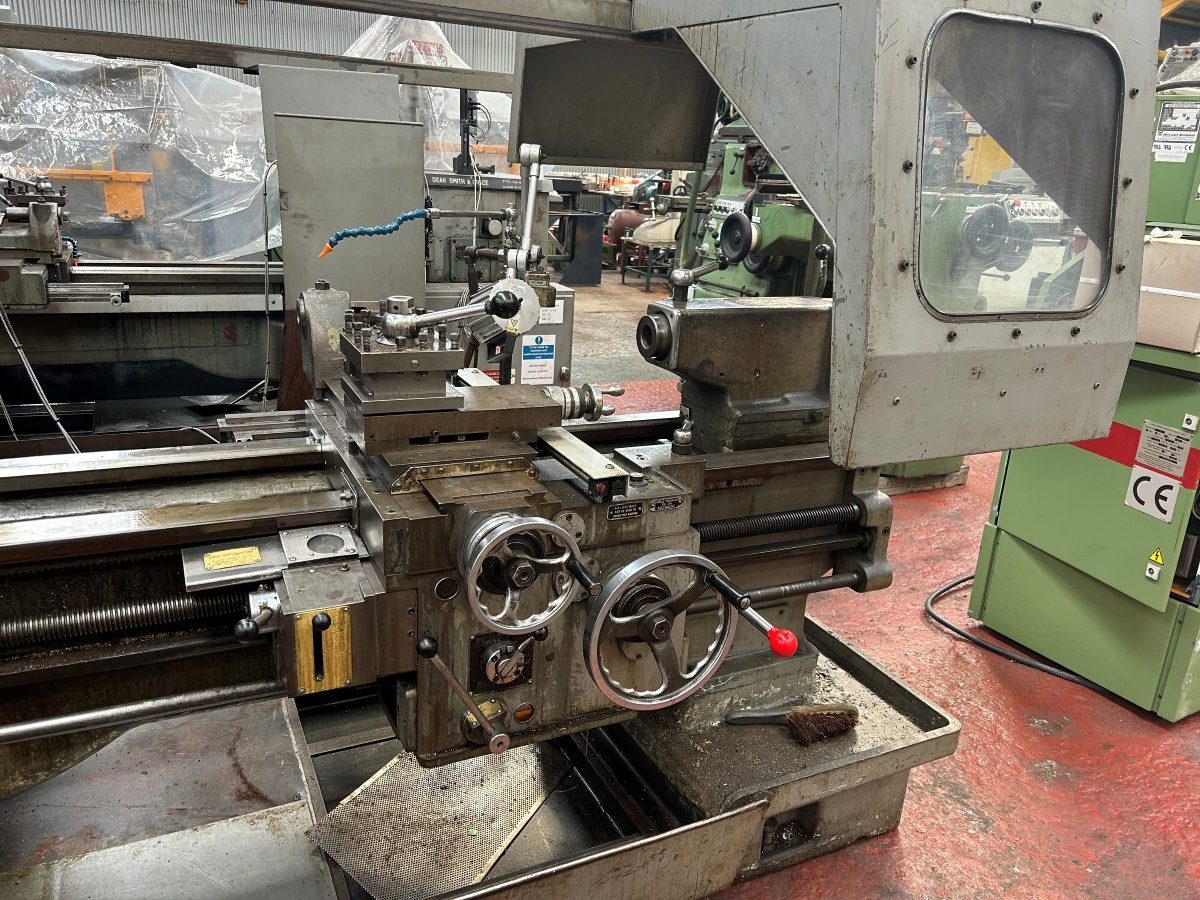

F4010 DEAN SMITH & GRACE 1709 X 60 GAP BED CENTRE LATHE
Dean Smith & Grace Type 1709 x 60″ Gap Bed Lathe, Swing over Bed 430mm x 1524mm BC
Description
Make: DEAN SMITH & GRACE 1709 X 60 GAP BED CENTRE LATHE
Model: Type 1709
Serial No 40811-7-77,
Swing Over Bed 430mm,
Swing Over Saddle 230mm,
Swing in Gap 660mm,
Maximum Distance Between Centres 1524mm,
Spindle Speeds 31.5 – 1400rpm,
Spindle Bore 80mm,
Feeds, Sliding 0.05 – 0.2mm/rev, Surfacing 0.025 – 0.1mm/rev,
Screw Cutting TPI 2 – 56, MM Pitch 0.5 – 14,
Motor 10HP, Electrics 415v, 3ph, 50 Cycles,
Complete With 4 Jaw Chuck, Taper Turning, 2 Axis DRO, Fixed 3 Point Steady, Cross Slide Drill Attachment, 4 Way Tool Post, Sliding Guard, Chuck Guard, Rear Splash Guard,
Approximate Dimensions 3300 x 1950 x 1800mm,
Approximate Weight 2500kg
