F4004 CRAWFORD SWIFT RAISED CENTRES GAP BED LATHE, Type 19/30C,
Description

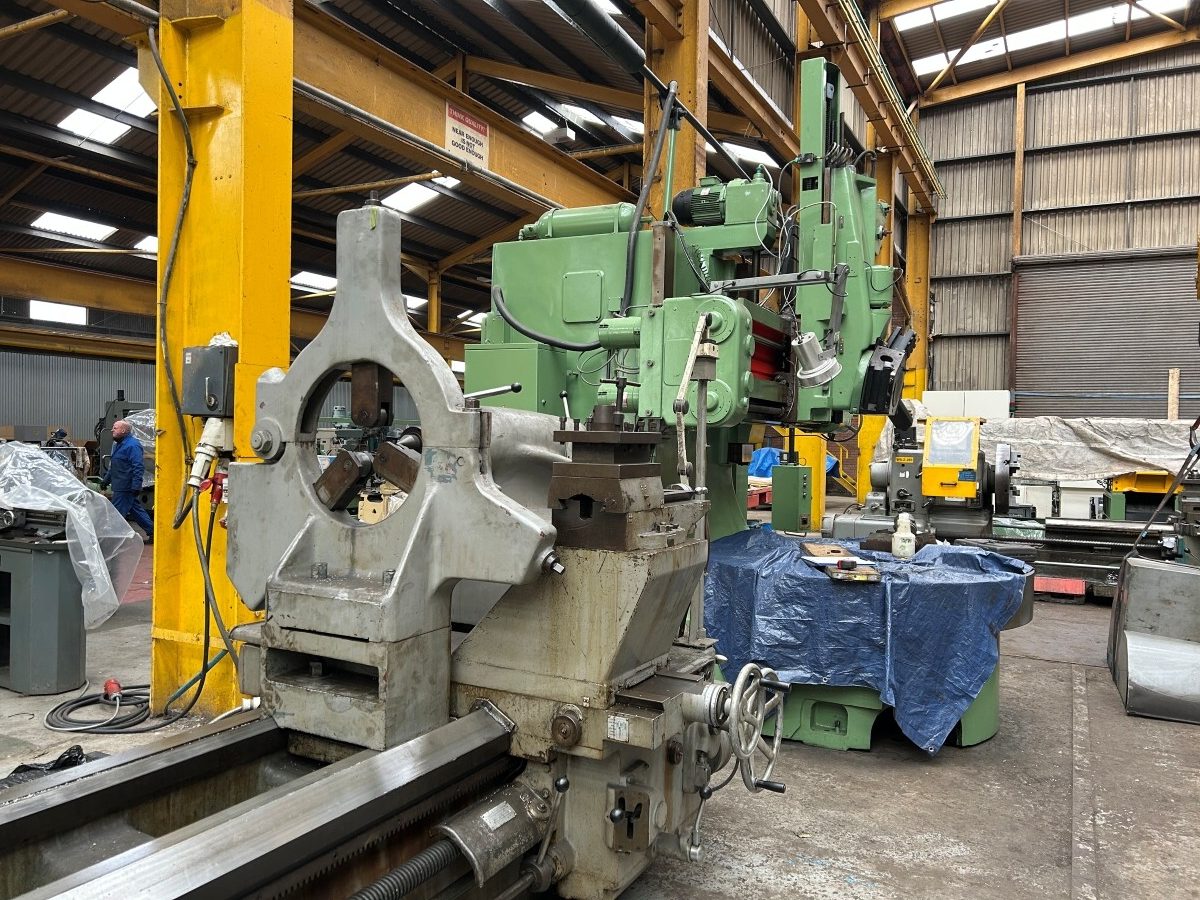

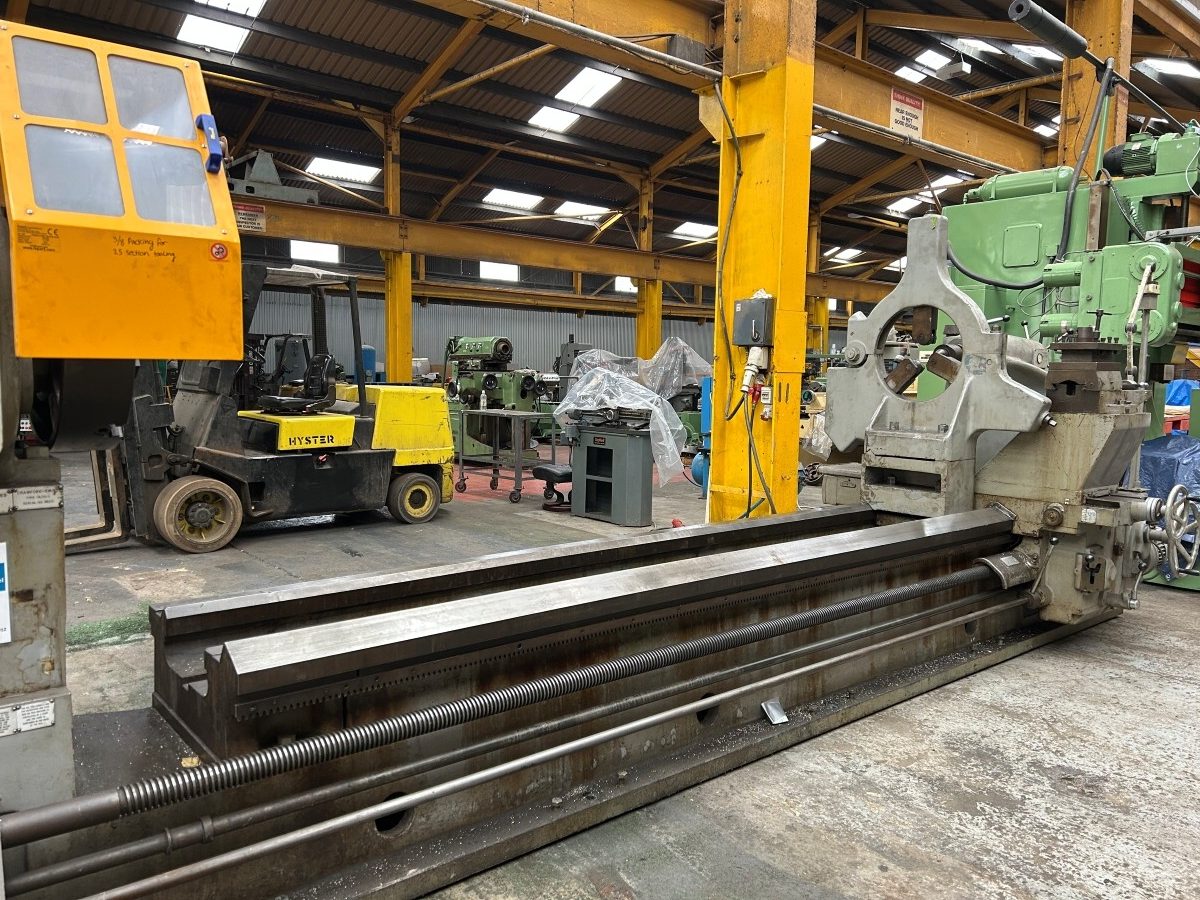

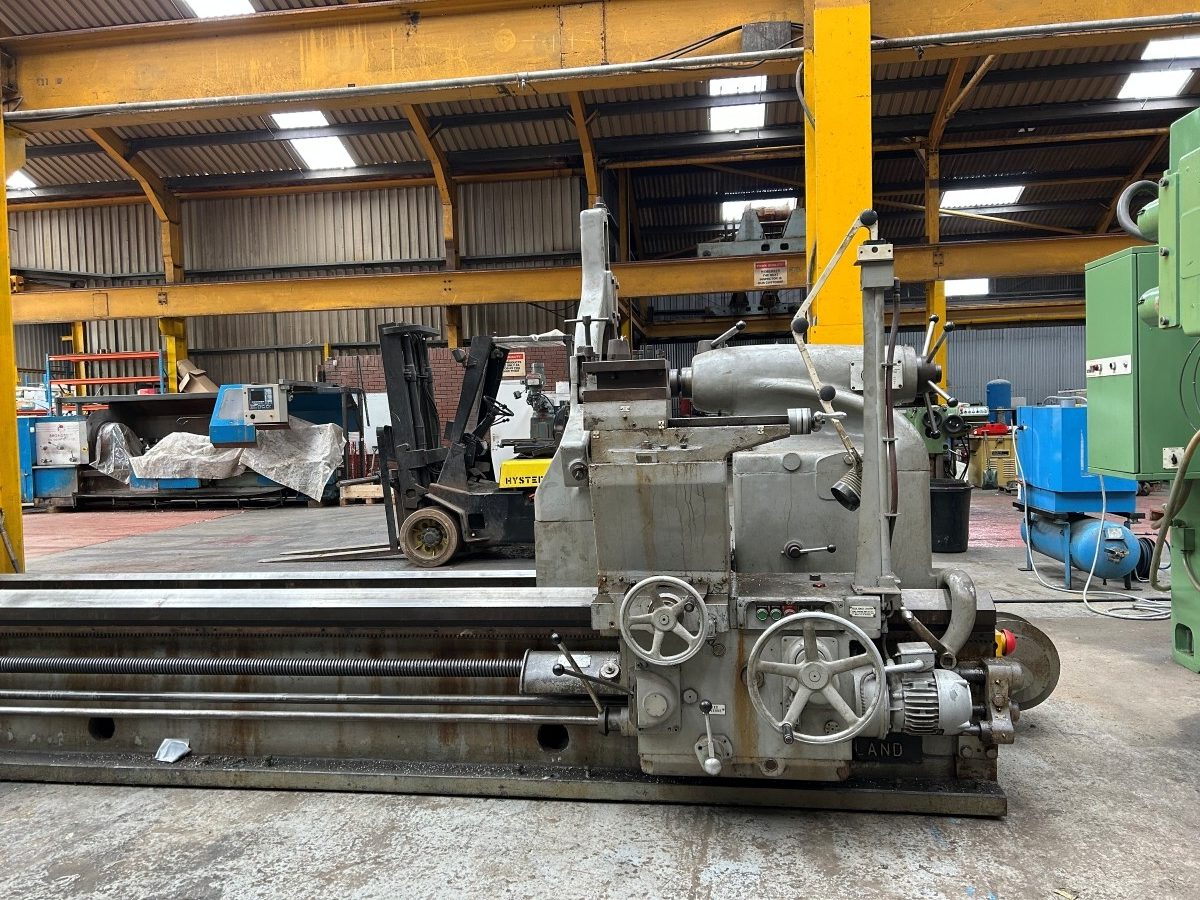

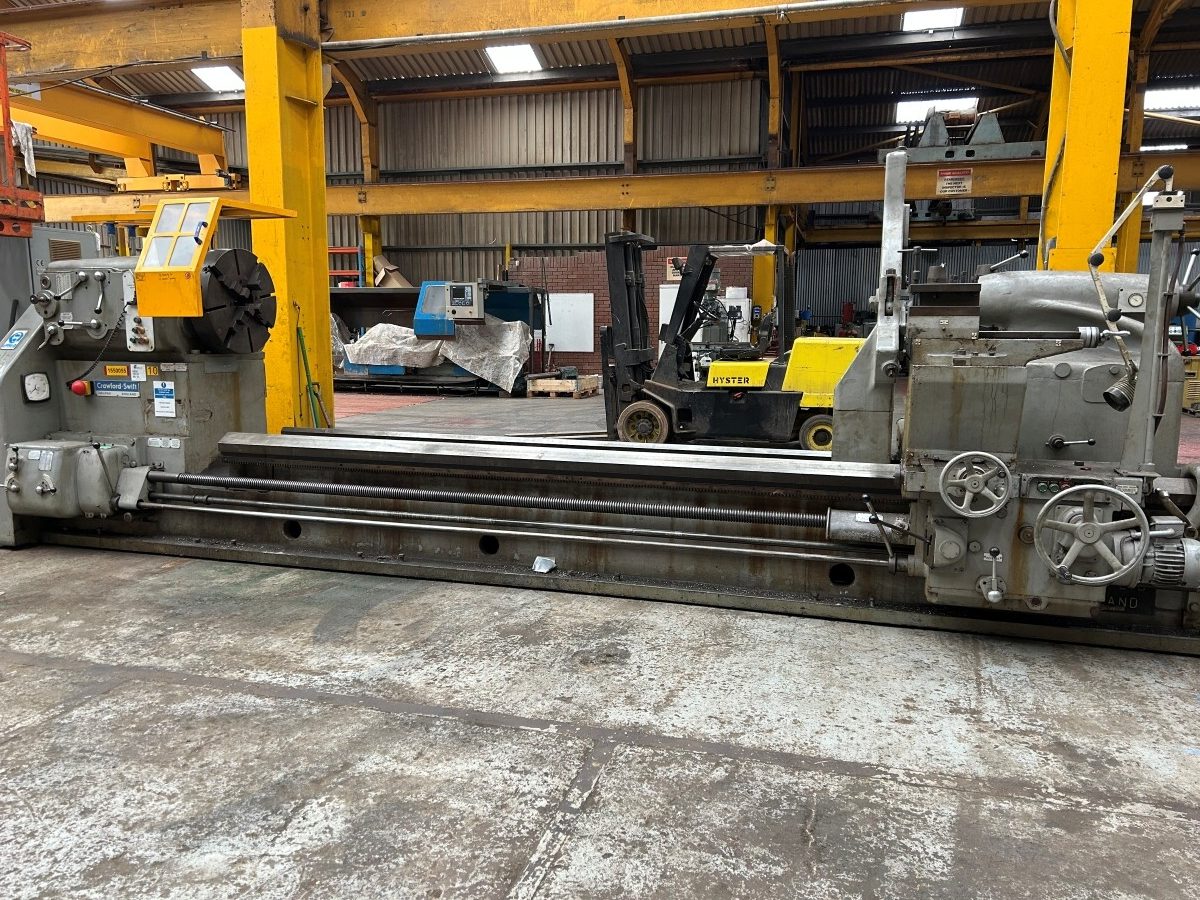

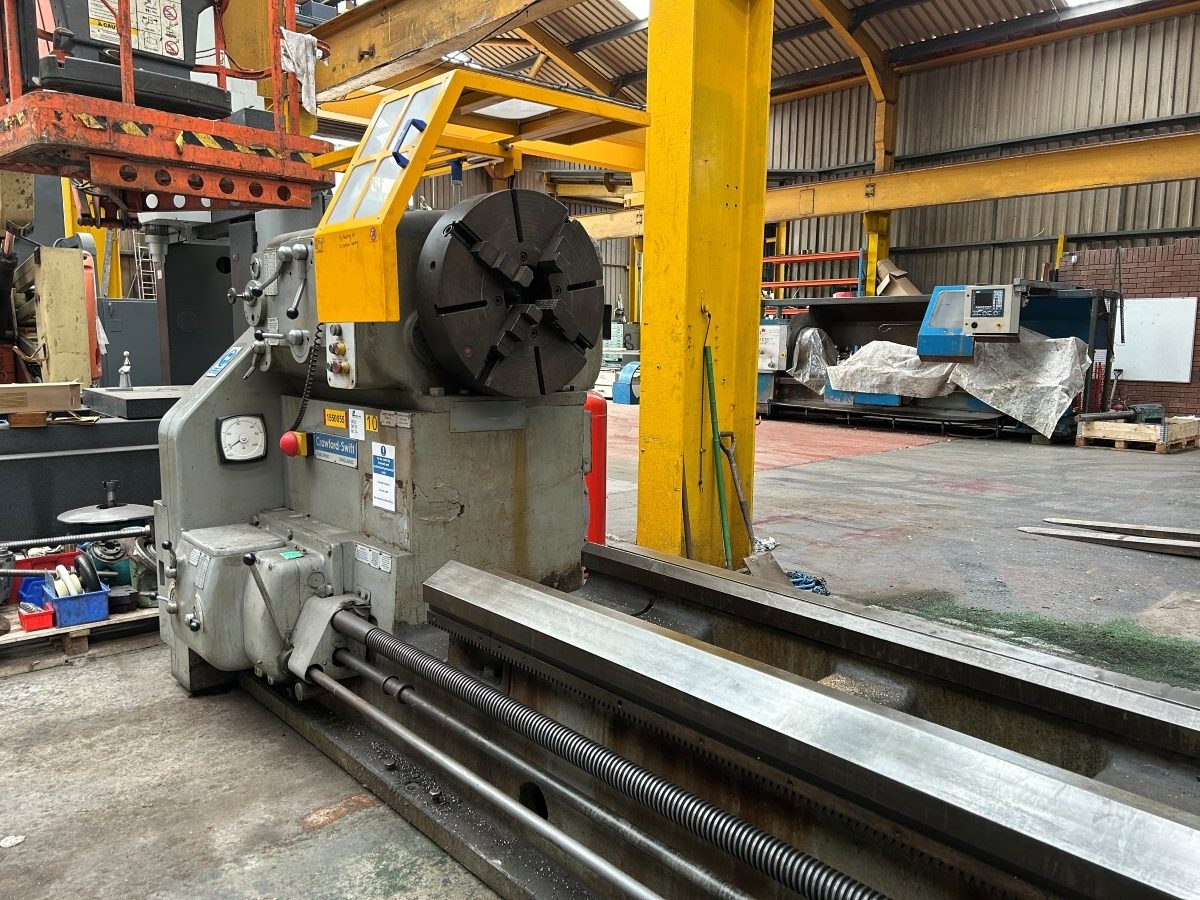

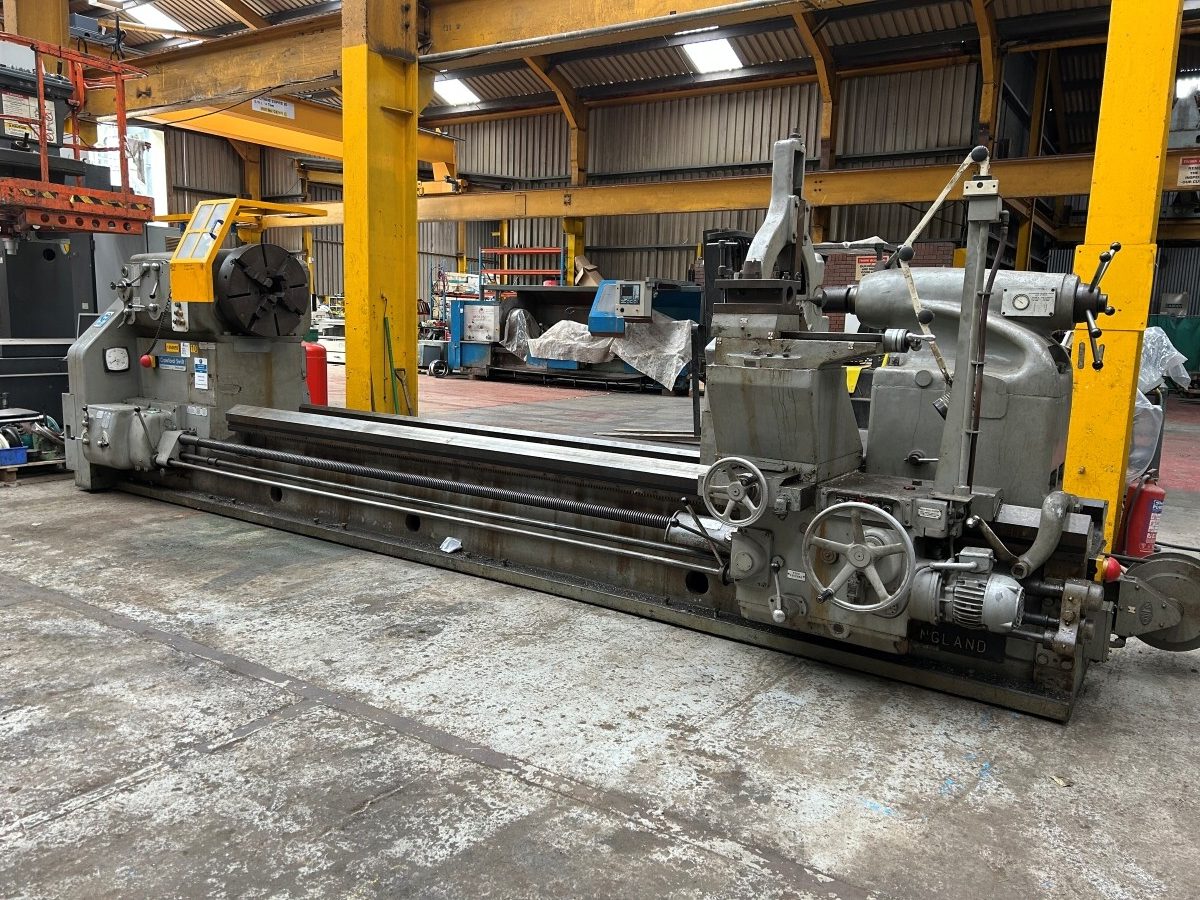

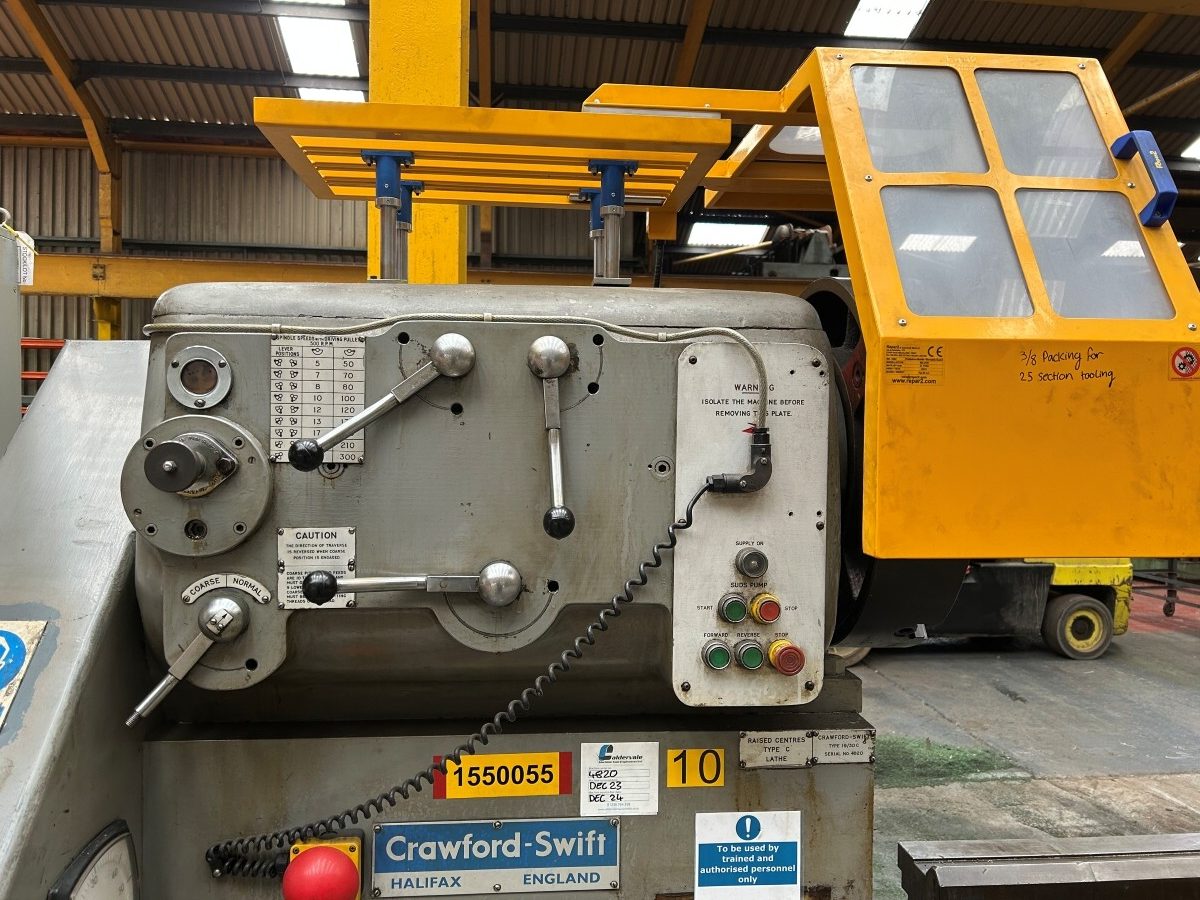

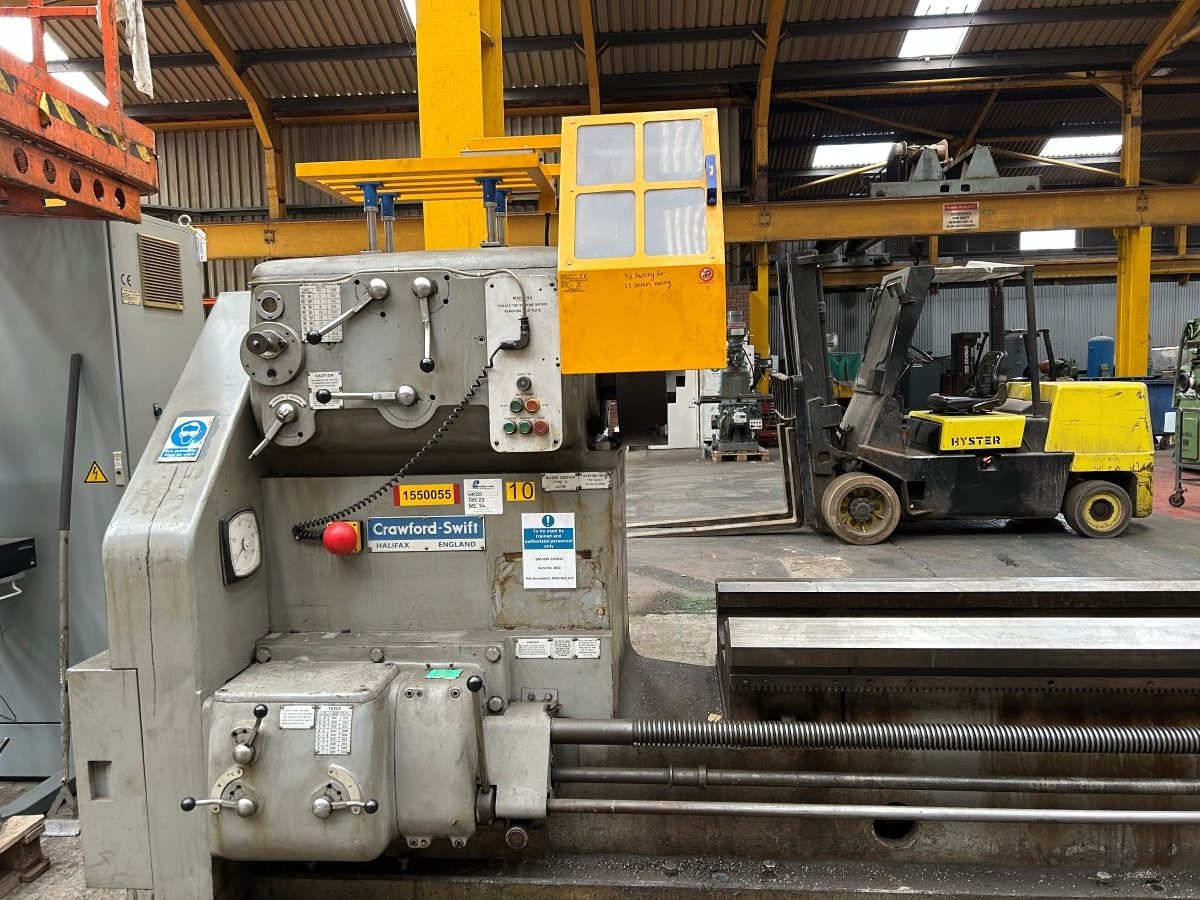

F4004 CRAWFORD SWIFT RAISED CENTRES GAP BED LATHE, Type 19/30C, Serial No 4820, Swing Over Bed 1560mm, Swing Over Saddle 1310mm, Swing in Gap 2160mm, Maximum Distance Between Centres 4040mm, Spindle Speeds 5 – 300rpm, Feeds Sliding 0.003 – 0.1” Per Rev, Surfacing 0.001 – 0.04” Per Rev, Screw Cutting: TPI 1 – 80, Metric 1 – 12mm Pitch, Motor 18.5kw, Electrics 415v, 3ph, 50 Cycles, Complete With 635mm 4 Jaw Chuck, 470mm 3 Jaw Fixed Steady, 4 Way Tool Post, Rapid Power Traverse, Feed to Compound Slide, Lovo Light, Spindle Brake, Interlocked Sliding Chuck Guard,
Approximate Dimensions 7200 x 2050 x 2100mm, Approximate Weight 10,000kg
