Description

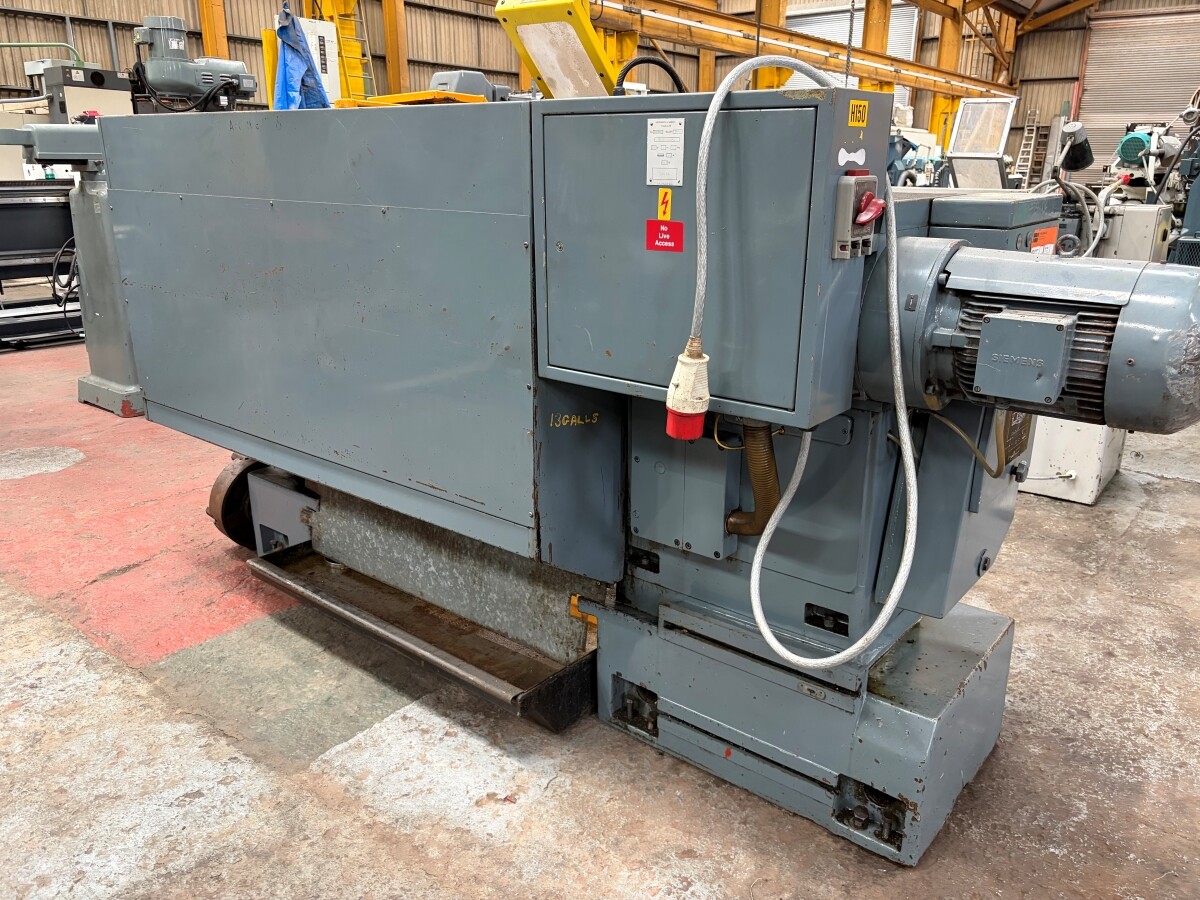

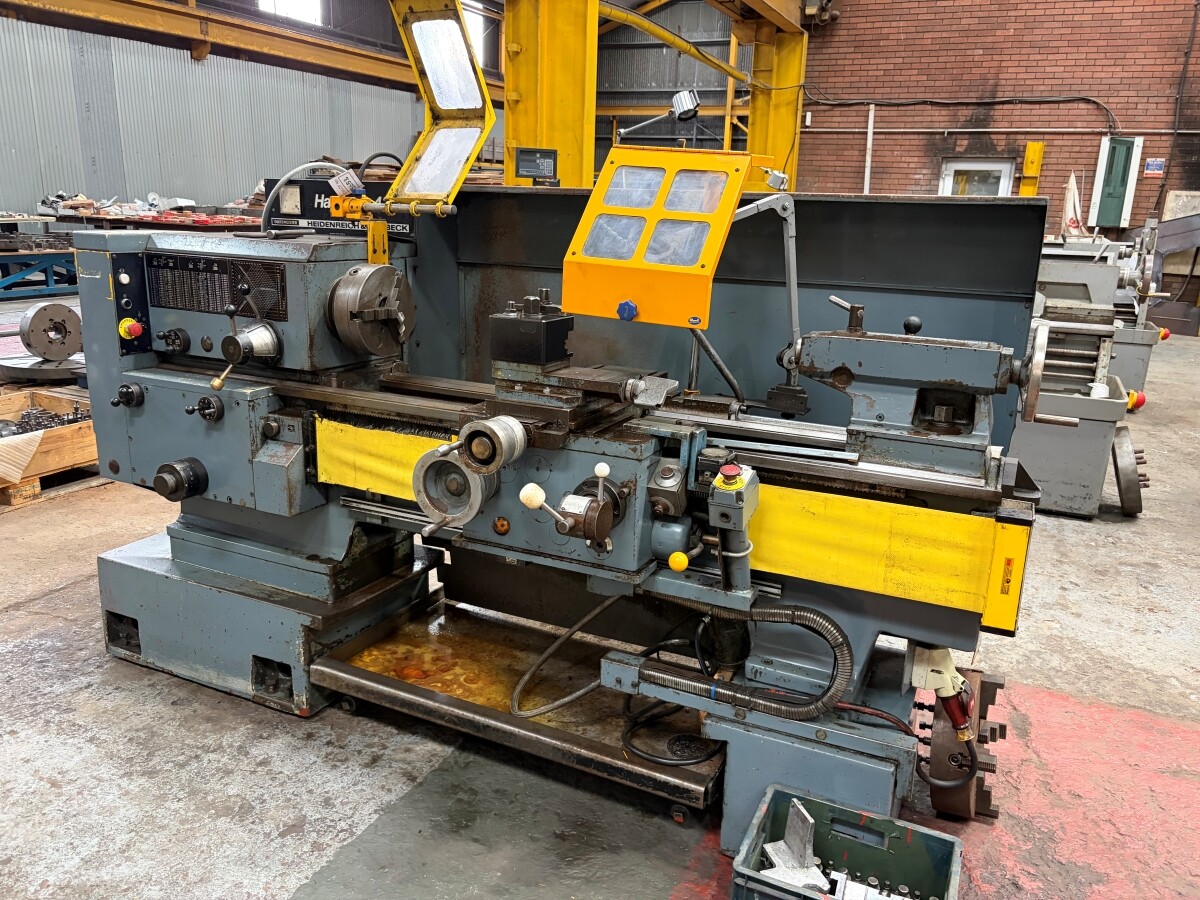

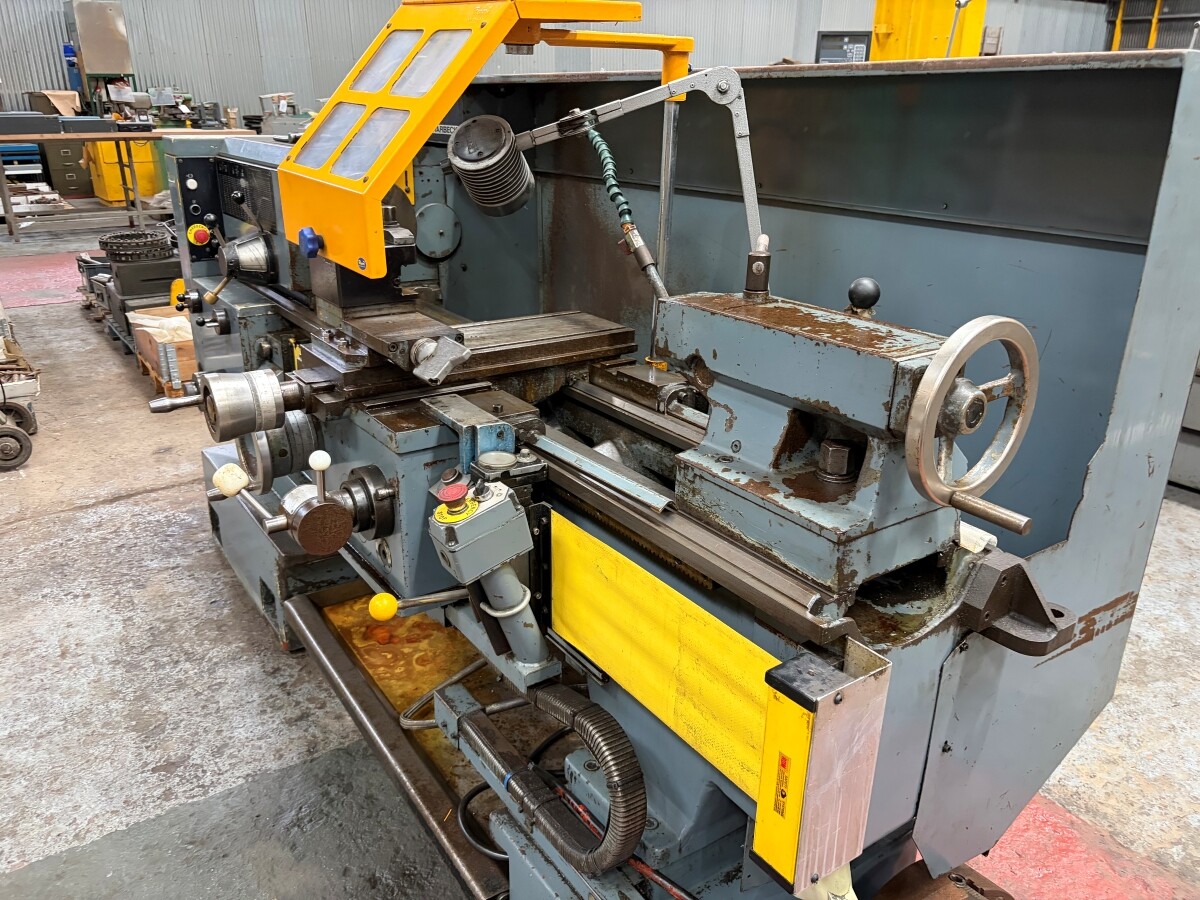

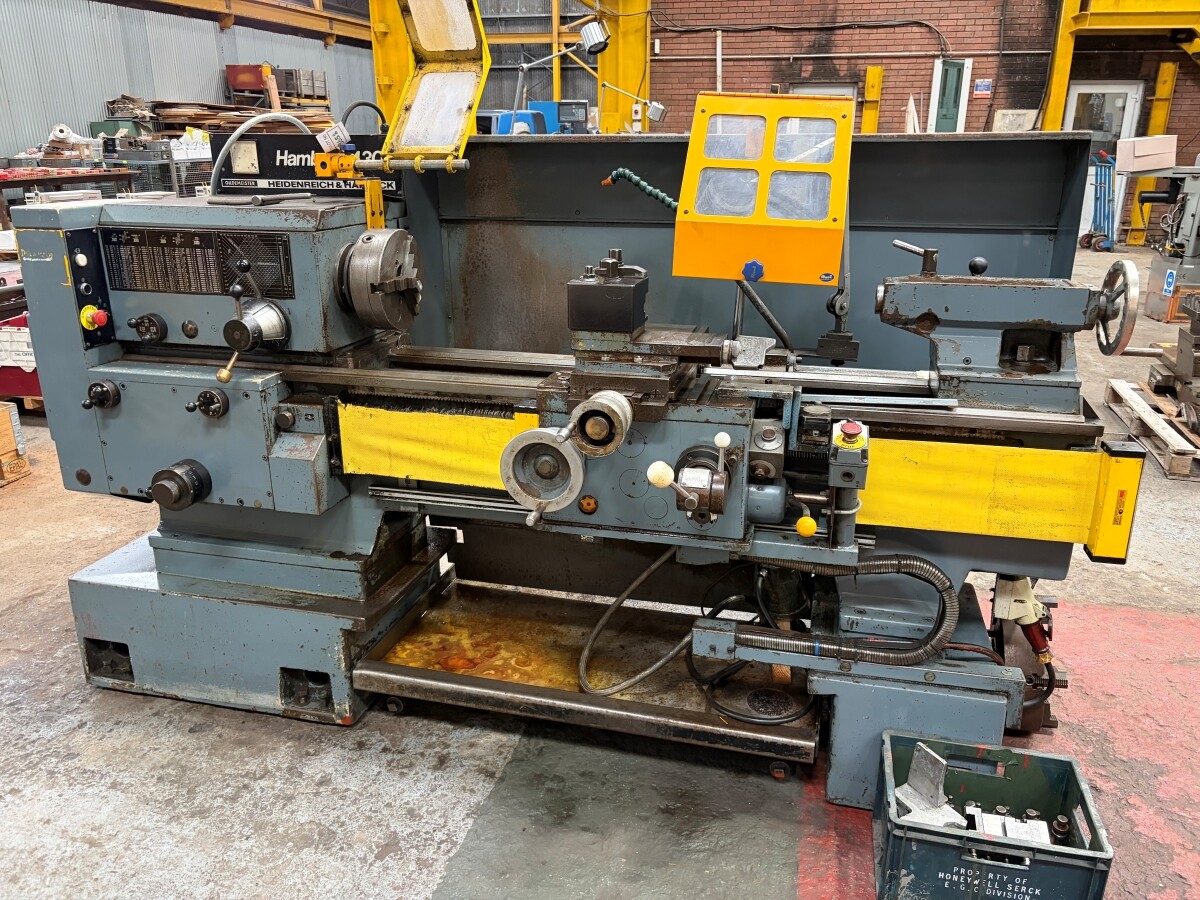

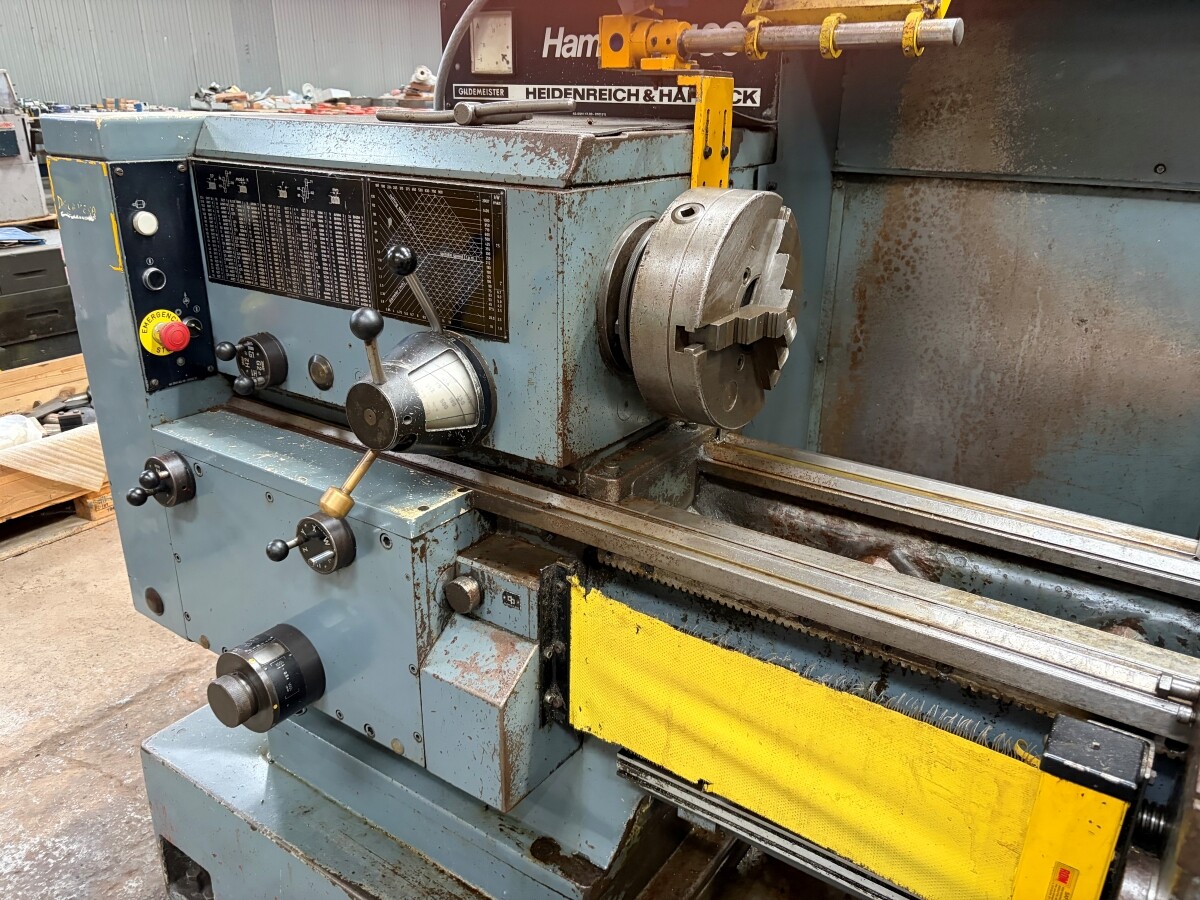

VDF HEIDENREICH & HARBECK HAMBERG

430 GAP BED LATHE

Swing Over Bed:                                                        430mm

Swing Over Saddle:                                                    235mm

Maximum Distance Between Centres:                       1000mm

Spindle Speeds:                                                          19 – 2000rpm

Spindle Bore:                                                              56mm

Tailstock Taper:                                                         4MT

Quill Stroke:                                                               135mm

Screw Cutting:

MM Pitch:                                                                  0.25 – 112

TPI:                                                                             ¼ – 108

Module:                                                                      0.125 – 28

DP:                                                                              1 – 224

Electrics:        415v, 3ph, 50 Cycles

Motor:             7.5kw

Complete With:

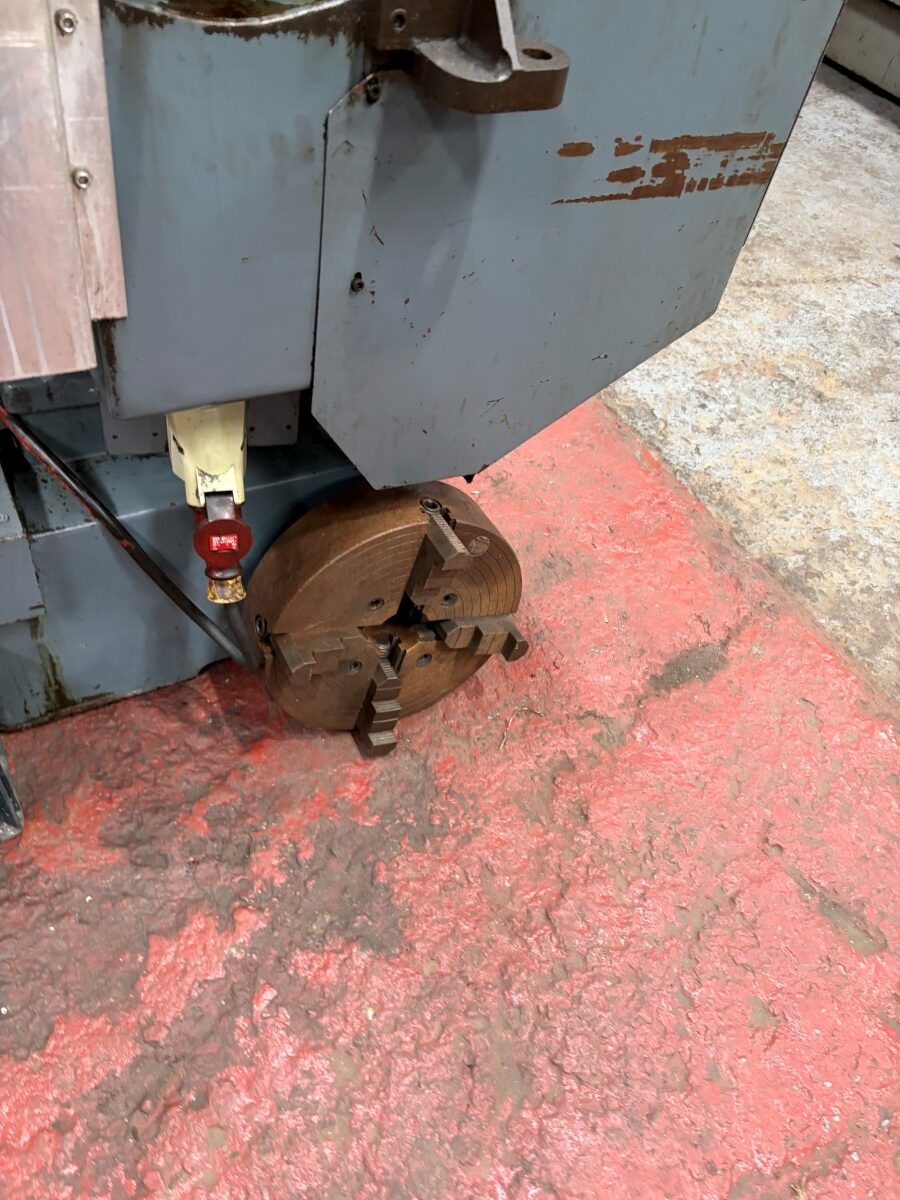

3 & 4 Jaw Chucks

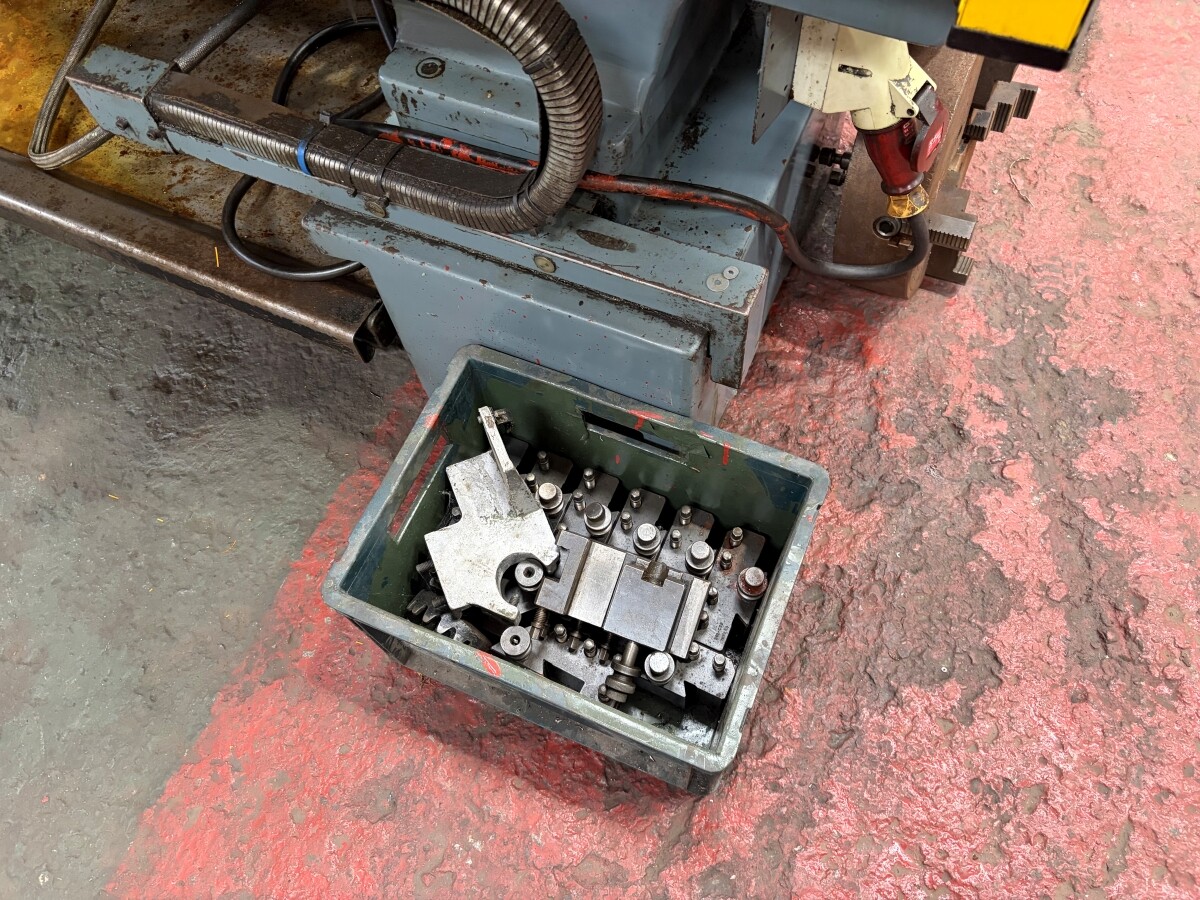

Quick Change Tool Post & Tool Holders

Coolant & Splash Guards

Lovo Light

Chuck Guard

Approximate Dimensions: 2700 x 1200 x 1600mm

Approximate Weight:      1950kg
