Description

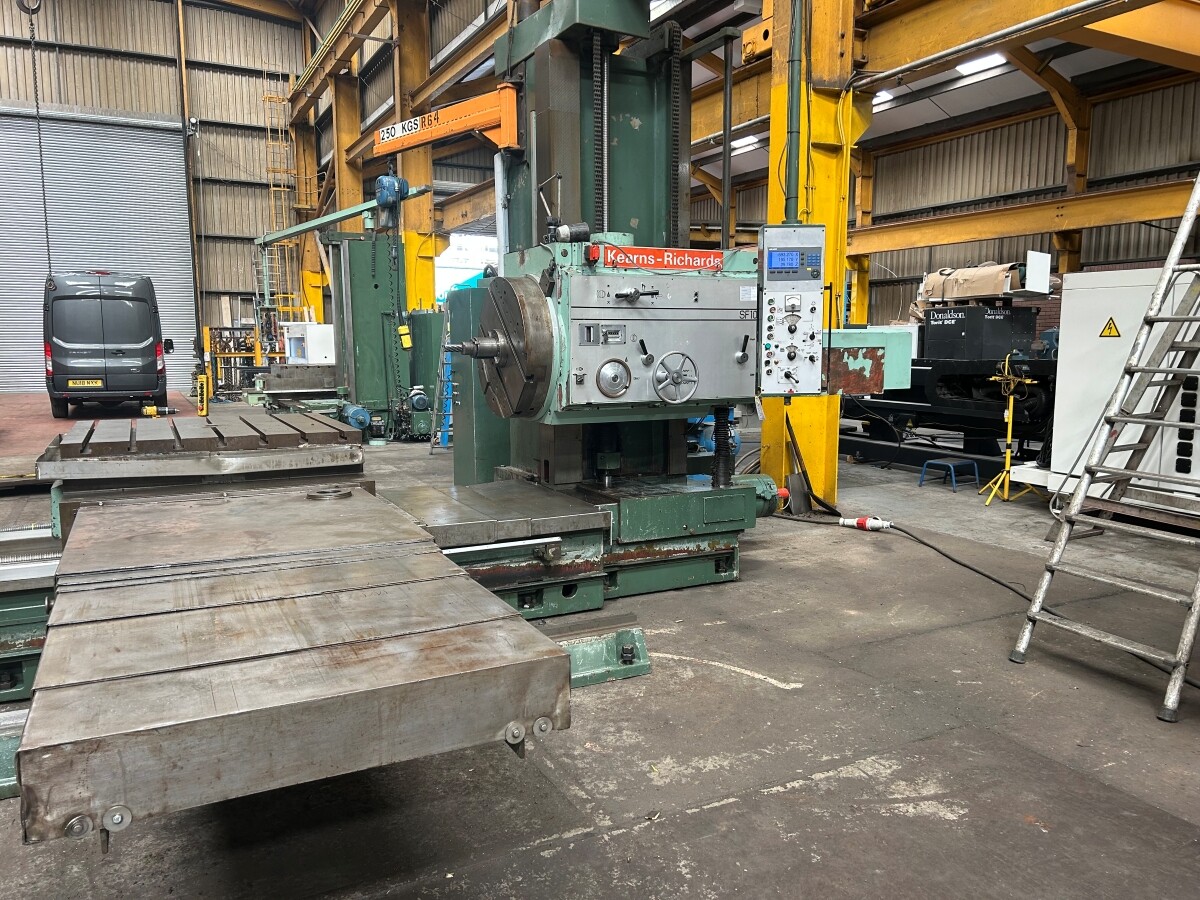

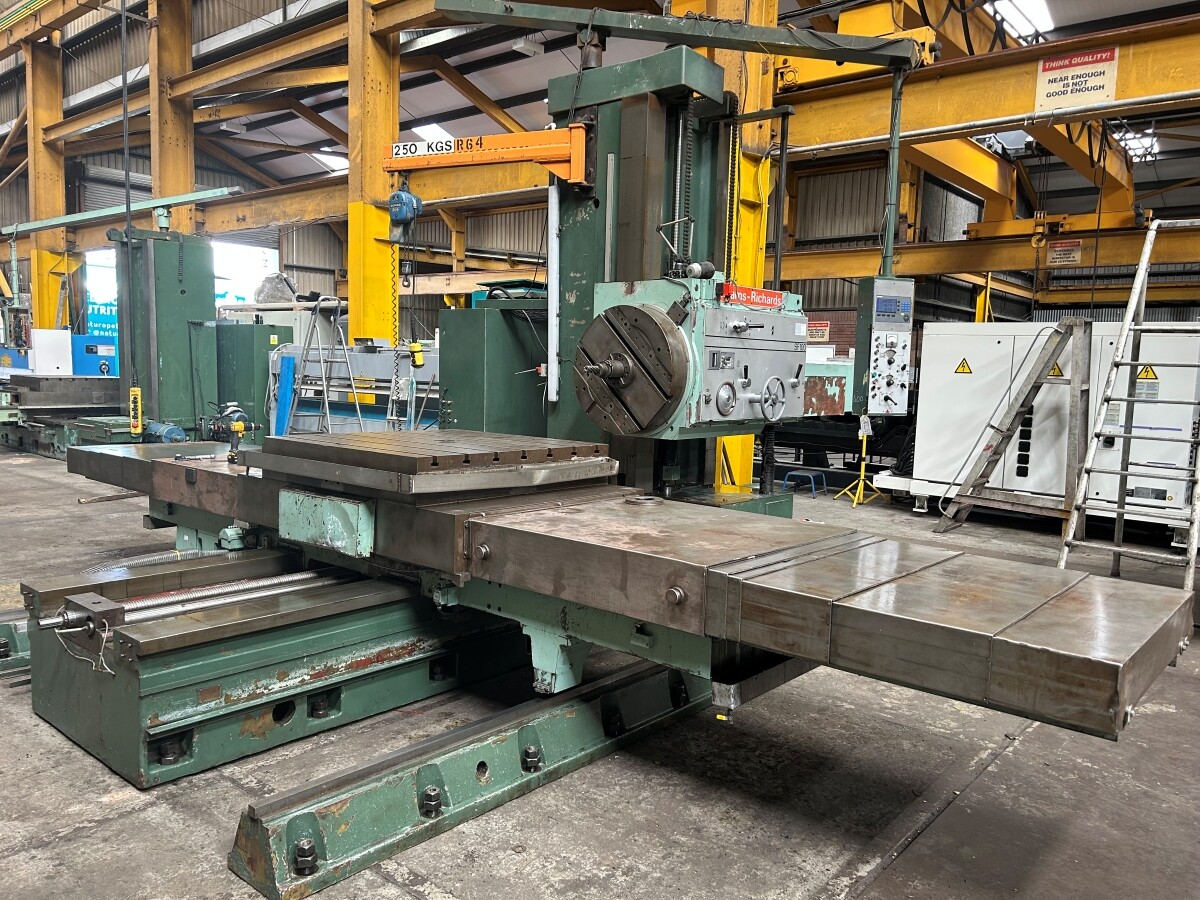

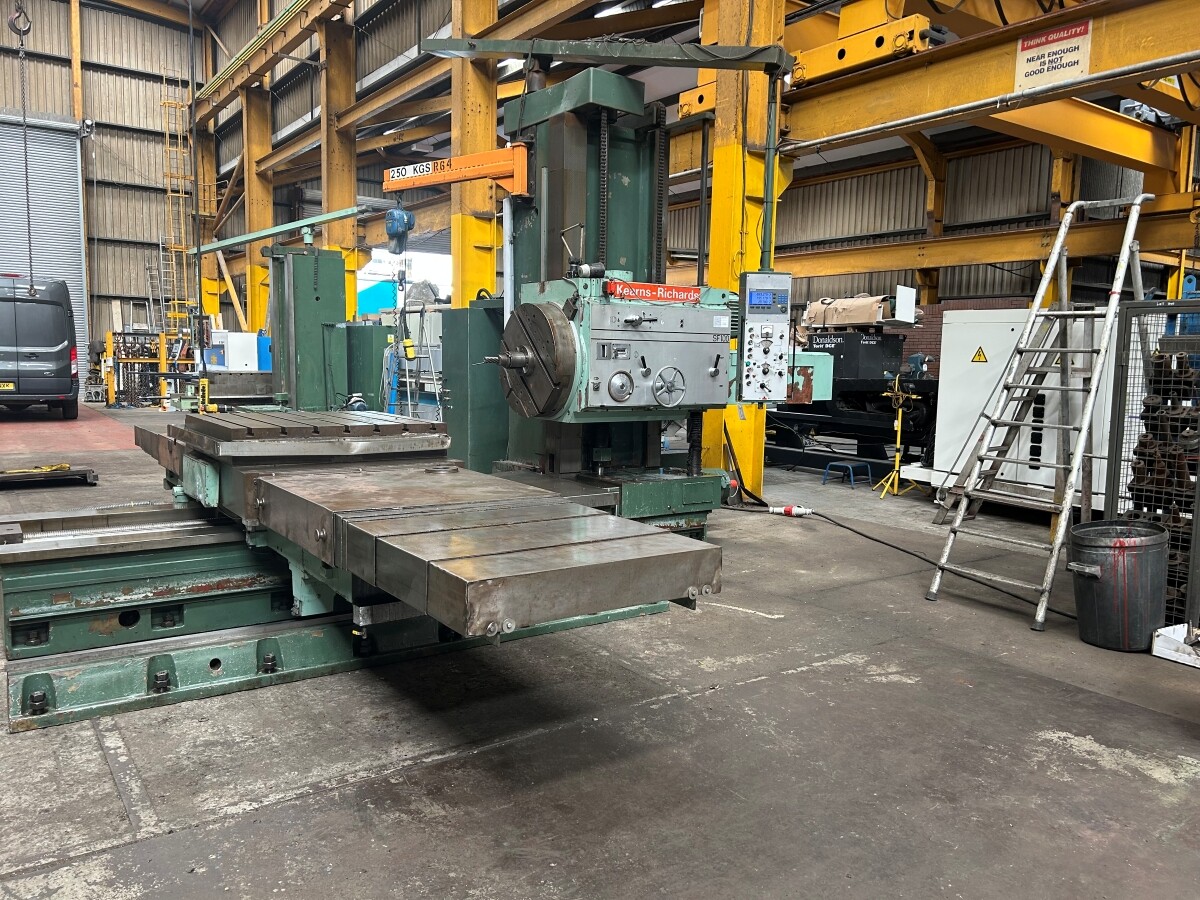

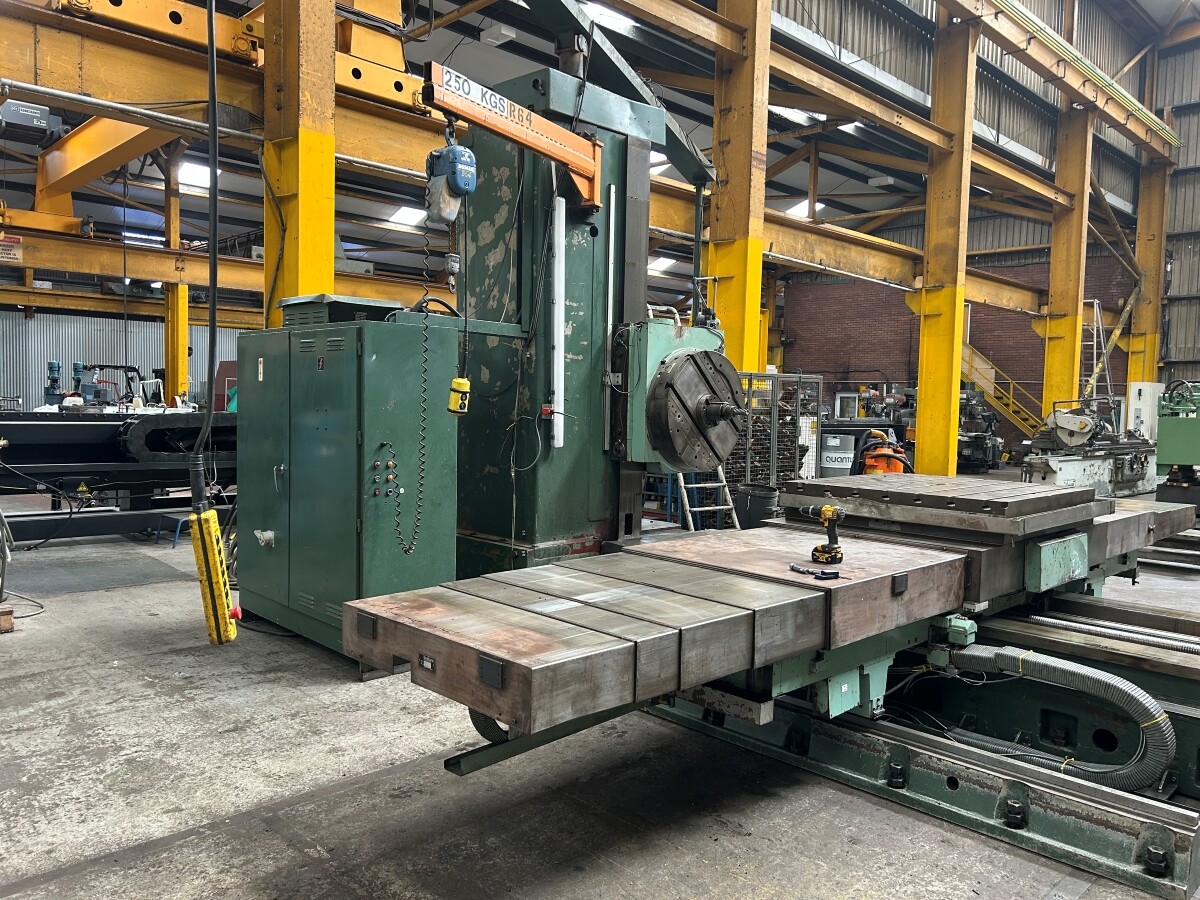

KEARNS RICHARDS SF100 TABLE TYPE HORIZONTAL BORER

Model:                  SF100

Capacity:

Spindle Dia:                                          125mm

Spindle Speeds:                                    22 – 1120rpm

Spindle Taper:                                     50 Int

Spindle Traverse:                                  750mm

Heavy Duty Milling Quill Dia:             225mm

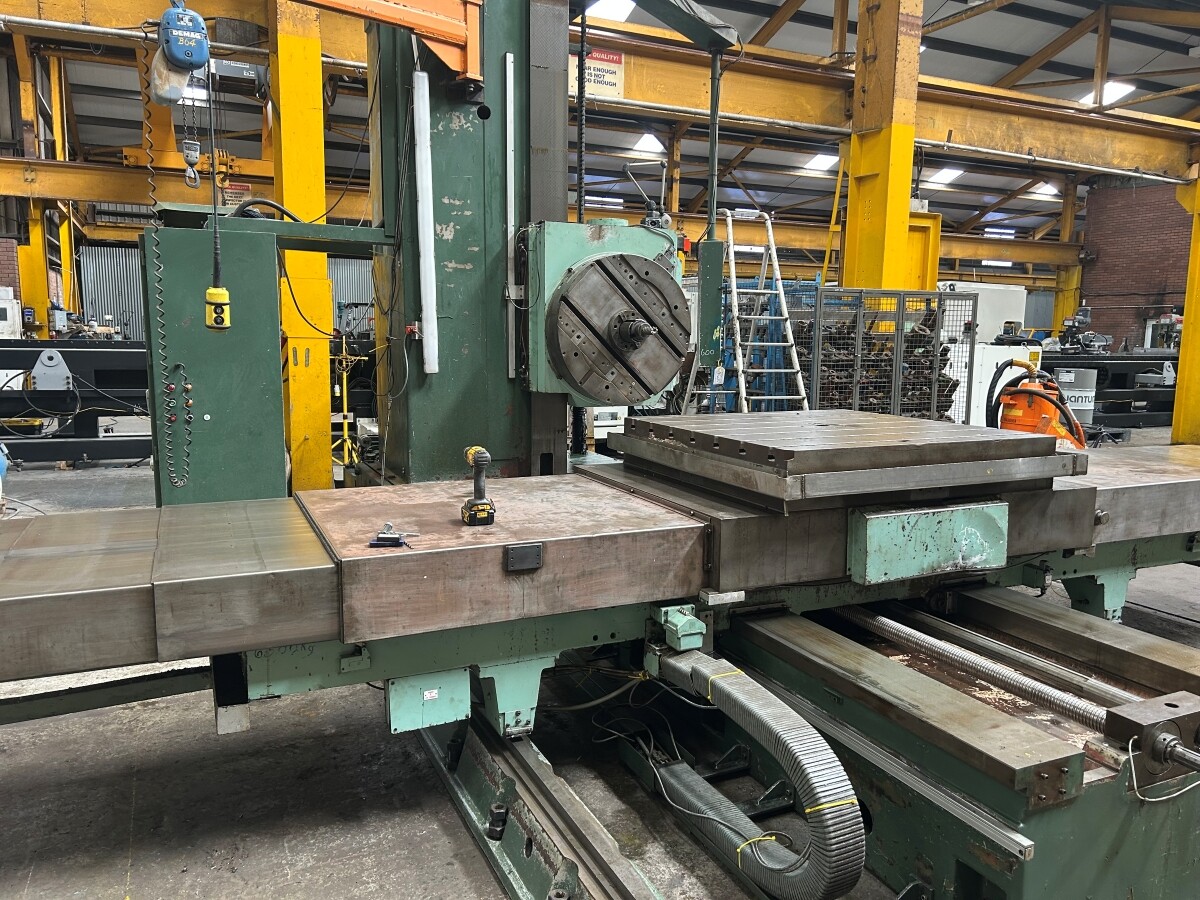

Facing Head Diameter:                         810mm

Facing Slide Traverse:                          190mm

Facing Head Speeds:                             2.2 – 224rpm

Rotary Table Size:                                1200 x 1200mm

Long Traverse:                                      1720mm         (Z Axis)

Cross Traverse:                                     2400mm         (X Axis)

Vertical Traverse:                                 1520mm          (Y Axis)

Feed Rates (3 Ranges):                        1.3 – 3820mm/min

Spindle Motor:                                  18.5kw

Electrics:                                           415v, 3ph, 50 Cycles

Complete with

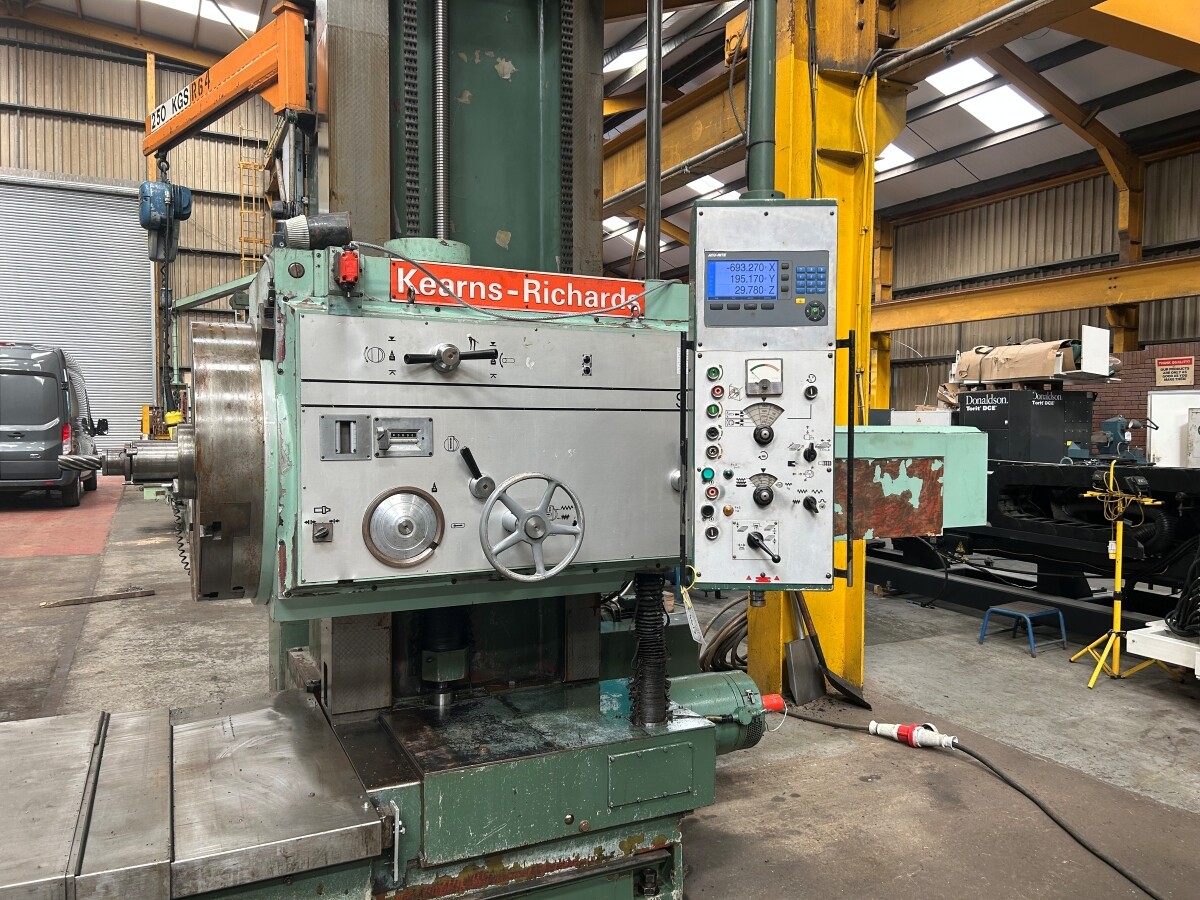

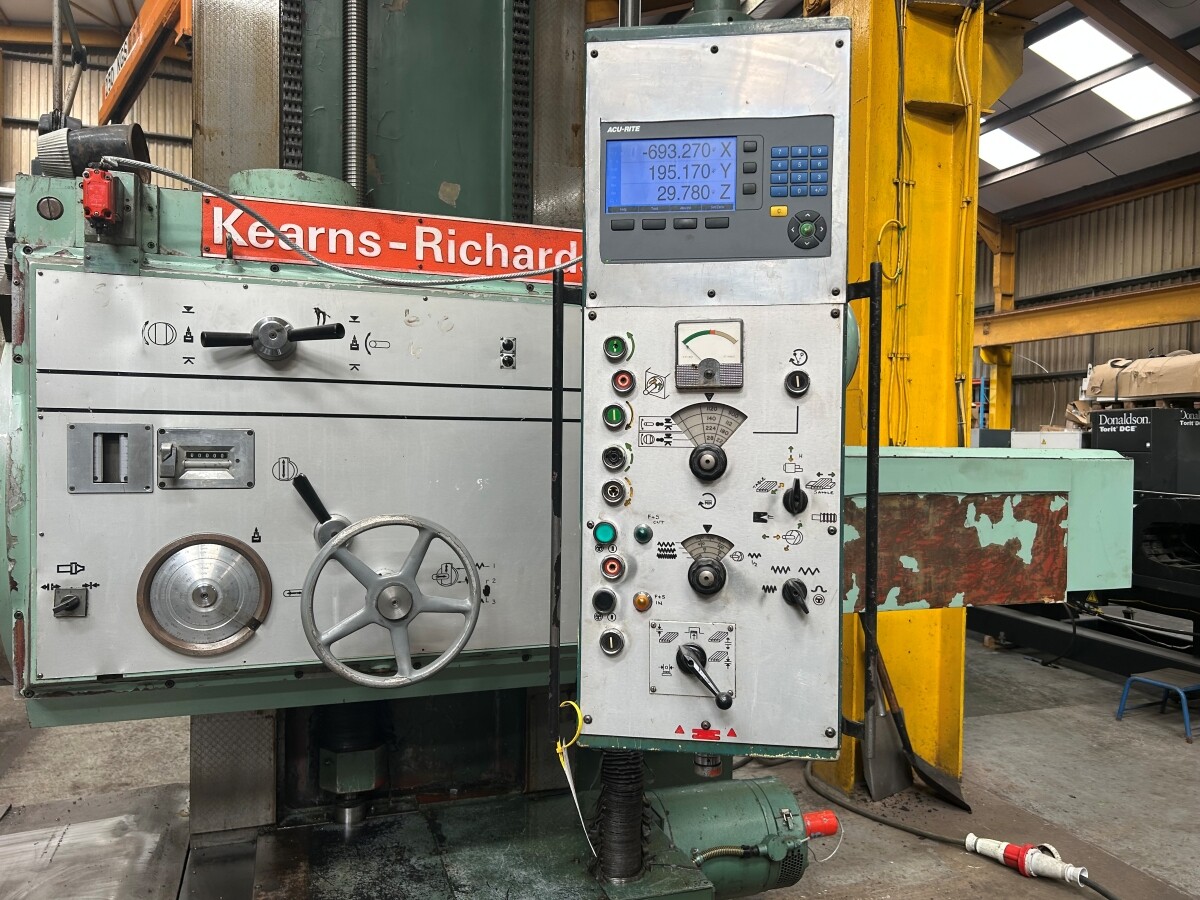

3 Axis DRO

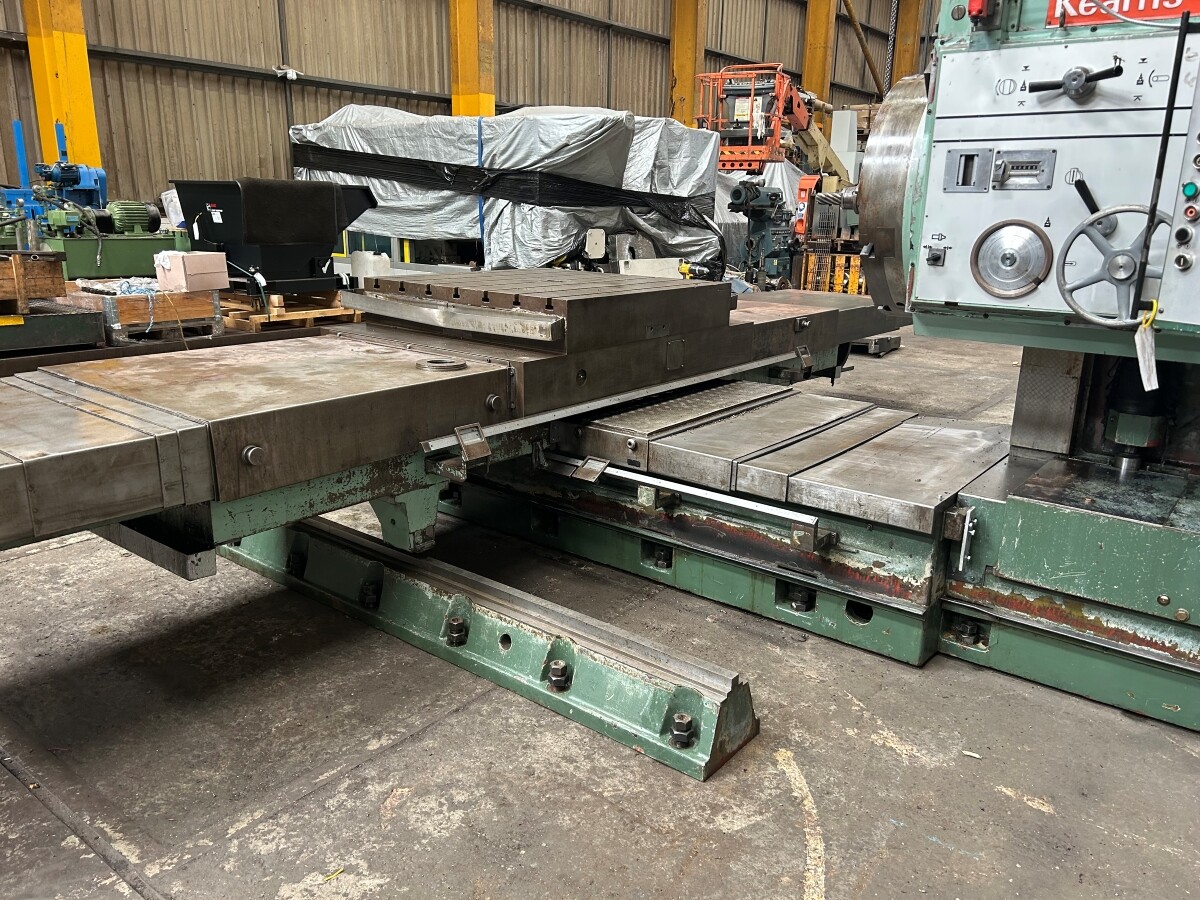

Out Rigger Support Rails

Steel Telescopic Guards to Long & Cross Traverse

Facing Slide Tool Holder

Heavy Duty Spindle Support Bearing

Manual Rotary Table

Safety Brake

Power Draw Bar

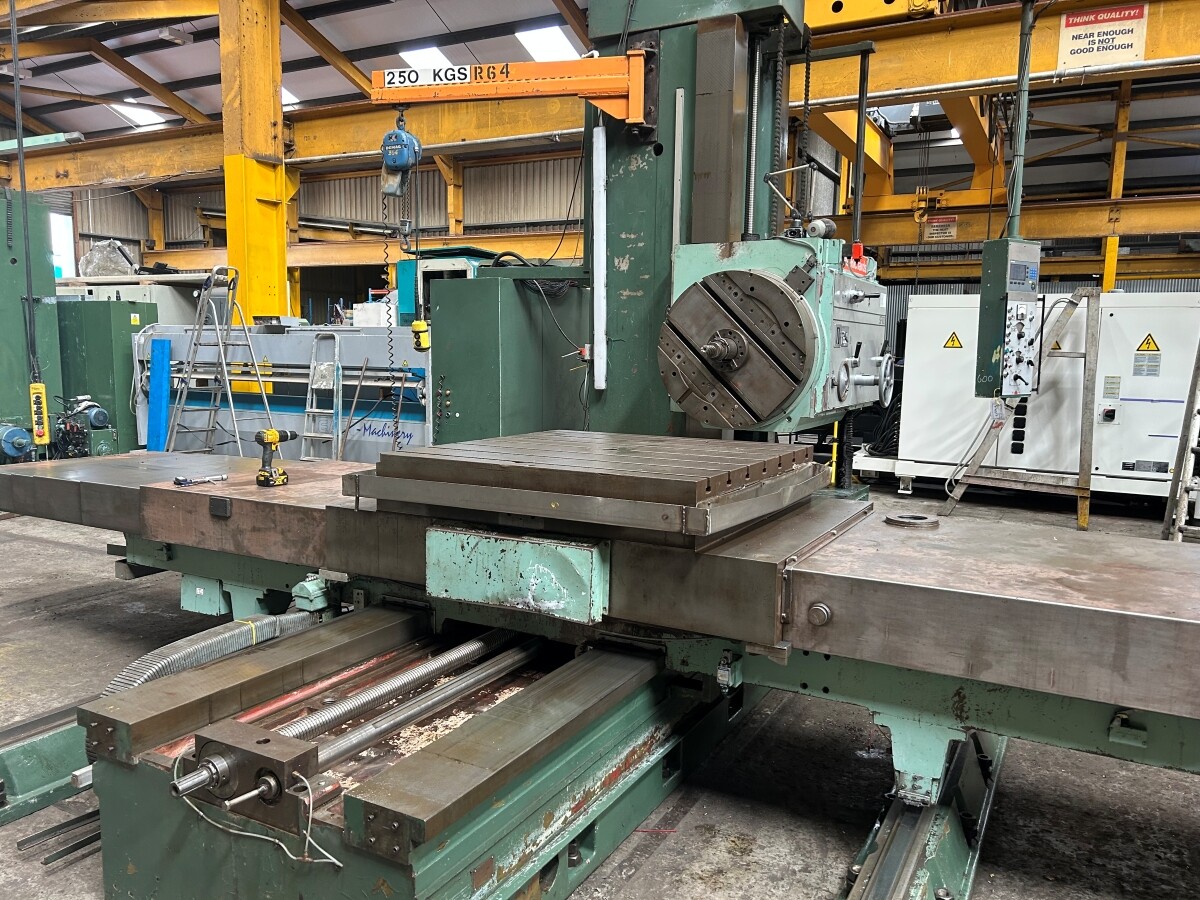

250kg Column Mounted Jib Crane
